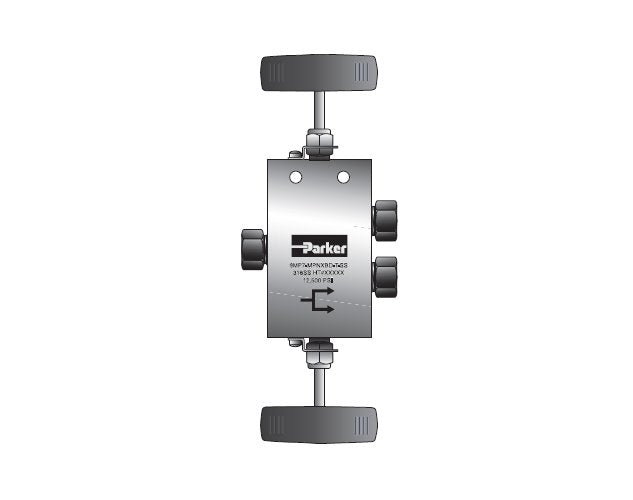

Parker MAN Series 3-Way/2-Stem Valve with MPI™ Connections - 15,000 psi
Parker MAN Series 3-Way/2-Stem Valve with MPI™ Connections - 15,000 psi
SKU:VAL-8bf6df
Precision control Parker MAN Series 3-Way Valve for liquid or gas media - 15,000 psi
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Parker MAN Series 3-Way/2-Stem Valve with MPI™ Connections - 15,000 psi
$249.99
Quantity: 1
Claim Your Seller Account
Parker MAN Series 3-Way/2-Stem Valve with MPI™ Connections - 15,000 psi
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker MAN Series 3-Way/2-Stem Valve is a highly reliable solution designed for precise control of liquid or gas media. With a pressure rating of up to 15,000 psi, this valve ensures secure regulation or shutoff. Featuring Double Ferrule MPI™ tube connections for easy installation and bubble-tight performance, it offers versatility with various body patterns to meet different control requirements. Crafted from CW 316 Stainless Steel as standard, it guarantees durability, non-rotating stem design prevents galling, and metal-to-metal seating ensures bubble-tight shut-off. Additional options like N-Dura Stem and Seat Coating or Stellite material enhance performance in severe service conditions. This valve complies with industry standards, making it a reliable choice for institutional applications.
Product Specifications

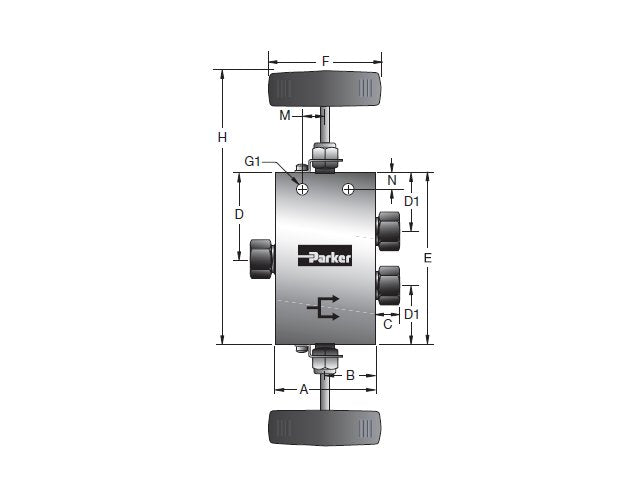

Dimensions A
2.50 in
Dimensions B
1.25 in
Dimensions Block Thickness
1.00 in
Dimensions B Stem Repair Kit
RSM4075
Dimensions C
.50 in
Dimensions Connection
1/4 MPI™
Dimensions D
1.69 in
Dimensions D1
1.19 in
Dimensions E
3.38 in
Dimensions F
3.00 in
Dimensions G1
.22 in
Dimensions H
5.84 in
Dimensions M
.63 in
Dimensions N
.38 in
Dimensions Orifice
.125 in
Dimensions Pressure
15000 psi
Dimensions Rated Cv
0.31
Dimensions R Stem Repair Kit
RSM4085
Specifications Features
Valve flow capabilities closely match associated tubing bore sizes CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option Rising stem/barstock body design Non-rotating stem prevents stem/seat galling Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles, unmatched temperature performance and excellent corrosion resistance Temperature range from -423°F (-252°C) to 1000°F (538°C) Standard PTFE packing provides dependable stem and body sealing from -423°F to 450°F, additional options include PTFE/Glass (25%) for temperatures to 600°F and Graphite Yarn for temperatures to 1000°F Choice of Vee (shutoff) or Regulating Flow Stem Tips Replaceable Seat Option available with Right Angle 2-way body style Optional N-Dura Stem and Seat Coating or Stellite material option for severe service available
Specifications Parker Mpi Connection Benefits
MPI™ Connections are designed for both liquids and gases. They can be used on MPI™ 1/8th Hard tubing, Autoclave Engineers Medium Pressure Tubing, or Thick Wall Instrumentation Tubing in both 316 SS and 2507 Super Duplex materials. Suparcase® Technology creates a Corrosion Resistant Ferrule set for a strong, mechanical hold Double Ferrule design is proven but not interchangeable with standard tube fittings Longer Thread Engagement improves resistance to pressure and load on ferrules Molybdenum Disulfide Coated Gland Nut prevents galling and makes assembly easier.
