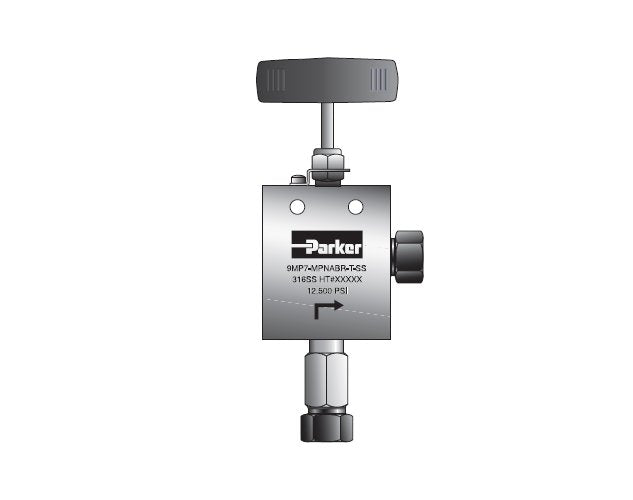

The Parker MAN Series 2-Way Replaceable Seat Valves are precision-engineered for multi-turn control of liquid or gas media, offering reliable regulation and shutoff capabilities for pressures up to 15,000 psi. Featuring a Double Ferrule connection with MPI™ tube sizes ranging from 1/4" to 1", these valves ensure fast, secure make-up and bubble-tight performance. Built to ASME standards, they come in five body patterns for versatile control options. With temperature ranges from -423°F to 1000°F, metal-to-metal seating, and interchangeable seat options, these valves guarantee unmatched durability, corrosion resistance, and longevity in demanding industrial applications.
Product Specifications

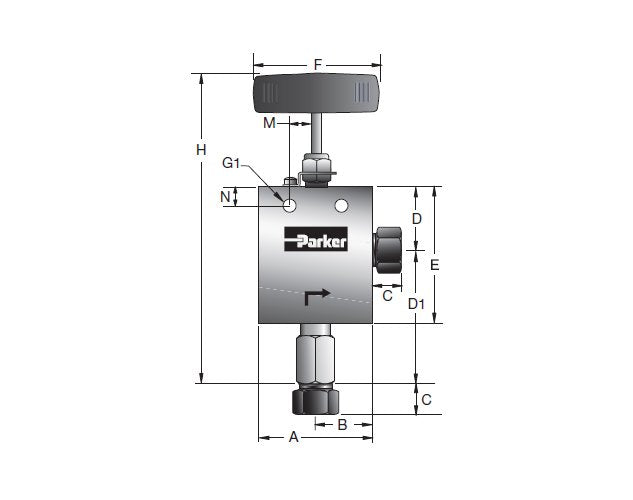

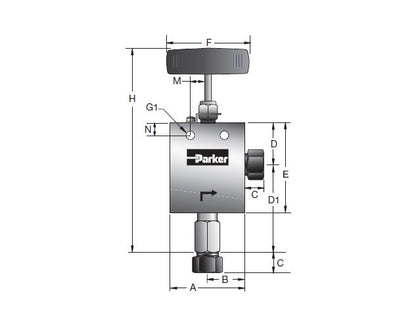

Dimensions A
3.00 in
Dimensions B
1.50 in
Dimensions Block Thickness
1.38 in
Dimensions B Stem Repair Kit
R20SM9872
Dimensions C
.69 in
Dimensions Connection
1/2 MPI™
Dimensions D
1.63 in
Dimensions D1
3.18 in
Dimensions E
3.12 in
Dimensions F
4.00 in
Dimensions G1
.34 in
Dimensions H
7.80 in
Dimensions M
.69 in
Dimensions N
.50 in
Dimensions Orifice
.312 in
Dimensions Pressure
15000 psi
Dimensions Rated Cv
2.0
Dimensions R Stem Repair Kit
R20SM9882
Specifications Features
Valve flow capabilities closely match associated tubing bore sizes CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option Rising stem/barstock body design Non-rotating stem prevents stem/seat galling Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles, unmatched temperature performance and excellent corrosion resistance Temperature range from -423°F (-252°C) to 1000°F (538°C) Standard PTFE packing provides dependable stem and body sealing from -423°F to 450°F, additional options include PTFE/Glass (25%) for temperatures to 600°F and Graphite Yarn for temperatures to 1000°F Choice of Vee (shutoff) or Regulating Flow Stem Tips Replaceable Seat Option available with Right Angle 2-way body style Optional N-Dura Stem and Seat Coating or Stellite material option for severe service available
Specifications Parker Mpi Connection Benefits
MPI™ Connections are designed for both liquids and gases. They can be used on MPI™ 1/8th Hard tubing, Autoclave Engineers Medium Pressure Tubing, or Thick Wall Instrumentation Tubing in both 316 SS and 2507 Super Duplex materials. Suparcase® Technology creates a Corrosion Resistant Ferrule set for a strong, mechanical hold Double Ferrule design is proven but not interchangeable with standard tube fittings Longer Thread Engagement improves resistance to pressure and load on ferrules Molybdenum Disulfide Coated Gland Nut prevents galling and makes assembly easier.
