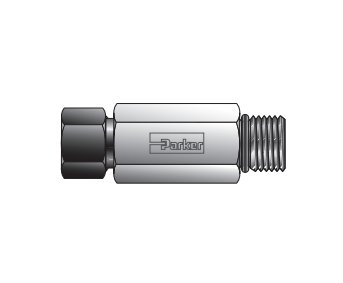

Parker MP7HBA MPI™ to SAE Male O-Ring Connector - Heavy Duty
Parker MP7HBA MPI™ to SAE Male O-Ring Connector - Heavy Duty
SKU:FIT-1d03e1
Durable Parker MP7HBA MPI™ to SAE Male O-Ring Connector - Engineered for high pressures & diverse tubing materials. ASME standard compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Parker MP7HBA MPI™ to SAE Male O-Ring Connector - Heavy Duty
$29.99
Quantity: 1
Claim Your Seller Account
Parker MP7HBA MPI™ to SAE Male O-Ring Connector - Heavy Duty
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker MP7HBA MPI™ to SAE Male O-Ring Connector is engineered for durability and performance in demanding applications such as off-shore oil and gas exploration platforms, research labs, and facilities requiring high operating pressures. Featuring a secure and gas-tight connection up to 15,000 psi, this fitting is compatible with various tubing materials including 316 SS and 2507 Super Duplex. Built to ASME standards, it includes corrosion-resistant ferrules and a compression gland nut, ensuring reliable sealing and mechanical hold. With features like molybdenum disulfide-coated parts and a dedicated focus on quality, this connector offers unmatched reliability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

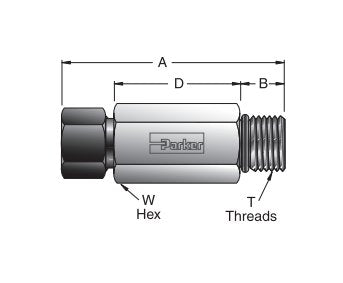

Dimensions A
2.20 in
Dimensions B
.47 in
Dimensions Connection Type
MPI™ to Straight Thread
Dimensions D
1.10 in
Dimensions Mpi Size
3/8
Dimensions Sae End
3/8
Dimensions T Thread
9/16 - 18
Dimensions Working Mawp Pressure
12500 psig
Dimensions W Hex
3/4 in
Specifications Assembly
MPI™ Fittings are assembled with standard hand tools up to 3/4" size. 1-1/2 turns past finger tight is all that is needed, 3/4 and 1 inch 316 SS tubing and 3/4 and 1 inch 2507 Tubing must be hydraulically preset. Note: All sizes can be hydraulically preset using the Parker Preset Tooling.
Specifications Dedication To Quality
Our resources and vast product line are available through our worldwide distribution network. For more information regarding our products and services, please contact your authorized Parker Instrumentation Distributor.
Specifications Engineering Standards Used
Parker Hannifin has designed all fittings and valves using the following ASME Standards and associated Safety Factors: ASME B31.1 Power Piping ASME B31.3 Process Piping
Specifications Features
Every MPI™ Fitting has the features shown below:Front ferrule with corrosion-resistant Parker Suparcase® forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tube.Back ferrule with corrosion-resistant Parker Suparcase® provides a strong mechanical hold on the tube.Longer thread area for improved resistance to pressure and load on the ferrules.Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes.Long tube-support area improves resistance to vibration and line loads.
Specifications Materials And Identification
Standard MPI™ Fittings and Valves are made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials. Tubing and fitting materials should be selected based on compatibility with the fluid or gas media.Part numbers for MPI™ Fittings use symbols that identify their style, size, and composition. 2507 material is easily identified by a groove in the gland nut hex.
