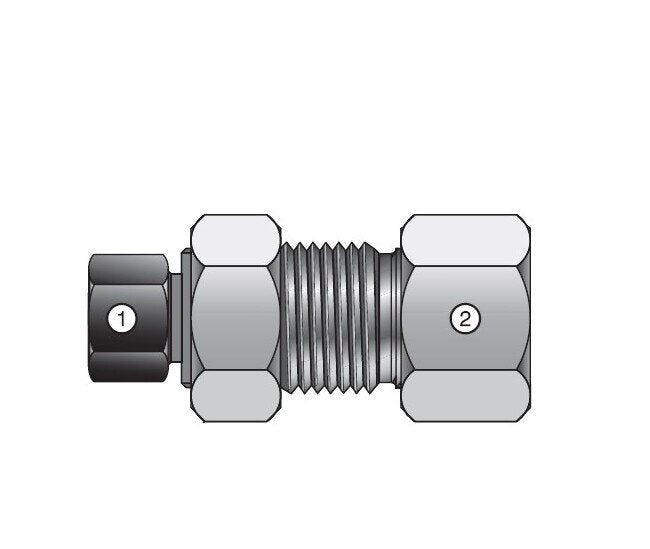

Parker MPI™ 1/2" Bulkhead to Female NPT Connector
Parker MPI™ 1/2" Bulkhead to Female NPT Connector
SKU:FIT-2c08b7
Secure and gas-tight Parker MPI™ 1/2" Bulkhead to Female NPT Connector for high-pressure applications up to 15,000 psi, featuring ASME compliance and corrosion-resistant materials.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Parker MPI™ 1/2" Bulkhead to Female NPT Connector
$49.99
Quantity: 1
Claim Your Seller Account
Parker MPI™ 1/2" Bulkhead to Female NPT Connector
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker MPI™ 1/2" Bulkhead to Female NPT Connector ensures secure and gas-tight connections up to 15,000 psi, ideal for off-shore oil platforms, research labs, and high-pressure facilities. Featuring corrosion-resistant materials, ASME compliance, and easy assembly with standard tools, this fitting is designed for longevity and performance. With Heat Code Traceable 316 SS or optional 2507 Super Duplex materials, this connector offers exceptional durability and compatibility with various media, making it a versatile and reliable choice for demanding applications.

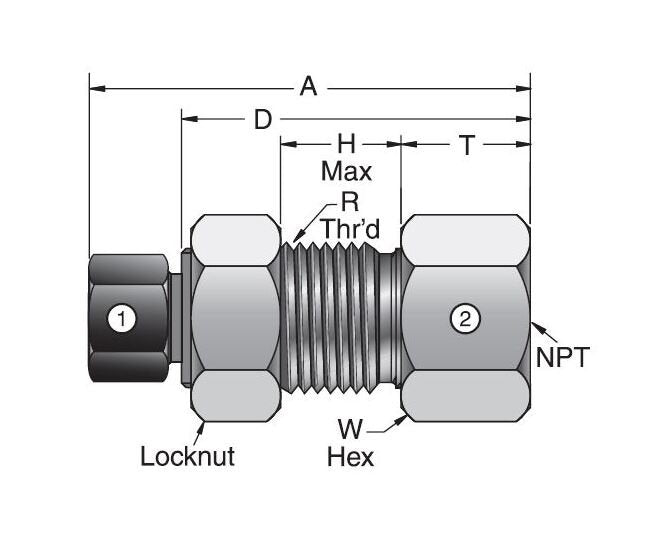

Product Specifications
Dimensions A
3.50 in
Dimensions Connection Type
MPI™ x FNPT
Dimensions D
2.81 in
Dimensions H Max
.81 in
Dimensions Mpi Size
1/2
Dimensions Npt Thread
3/4 -14
Dimensions R Thread
1 1/8-20
Dimensions T
1.31 in
Dimensions Working Mawp Pressure
10000 psig
Dimensions W Hex
1 1/2 in
Specifications Assembly
MPI™ Fittings are assembled with standard hand tools up to 3/4" size. 1-1/2 turns past finger tight is all that is needed, 3/4 and 1 inch 316 SS tubing and 3/4 and 1 inch 2507 Tubing must be hydraulically preset. Note: All sizes can be hydraulically preset using the Parker Preset Tooling.
Specifications Dedication To Quality
Our resources and vast product line are available through our worldwide distribution network. For more information regarding our products and services, please contact your authorized Parker Instrumentation Distributor.
Specifications Engineering Standards Used
Parker Hannifin has designed all fittings and valves using the following ASME Standards and associated Safety Factors: ASME B31.1 Power Piping ASME B31.3 Process Piping
Specifications Features
Every MPI™ Fitting has the features shown below:Front ferrule with corrosion-resistant Parker Suparcase® forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tube.Back ferrule with corrosion-resistant Parker Suparcase® provides a strong mechanical hold on the tube.Longer thread area for improved resistance to pressure and load on the ferrules.Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes.Long tube-support area improves resistance to vibration and line loads.
Specifications Materials And Identification
Standard MPI™ Fittings and Valves are made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials. Tubing and fitting materials should be selected based on compatibility with the fluid or gas media. Part numbers for MPI™ Fittings use symbols that identify their style, size, and composition. 2507 material is easily identified by a groove in the gland nut hex.
