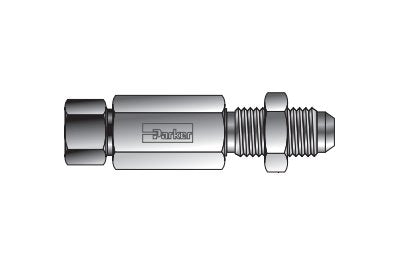

Parker MPI™ 37° Flare Bulkhead to MPI™ Connector
Parker MPI™ 37° Flare Bulkhead to MPI™ Connector
SKU:FIT-aadab0
Secure and gas-tight Parker MPI™ 37° Flare Bulkhead Connector for 15,000 psi operations. Designed for oil exploration and research labs.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Parker MPI™ 37° Flare Bulkhead to MPI™ Connector
$69.99
Quantity: 1
Claim Your Seller Account
Parker MPI™ 37° Flare Bulkhead to MPI™ Connector
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Hannifin MP7H2BX 37° Flare Bulkhead to MPI™ Connector is a premium medium-pressure fitting meticulously designed for industries like off-shore oil exploration and research labs. Engineered to endure operating pressures up to 15,000 psi (1035 bar), this connector guarantees a secure, gas-tight connection. Crafted from Heat Code Traceable 316 SS or 2507 Super Duplex materials, the MPI™ Fitting features corrosion-resistant Parker Suparcase® ferrules, molybdenum disulfide-coated nut, and ASME-compliant design for optimal performance and safety. Assembled with standard tools or hydraulically for larger sizes, this fitting ensures ease of installation with top-tier quality and reliability.
Product Specifications

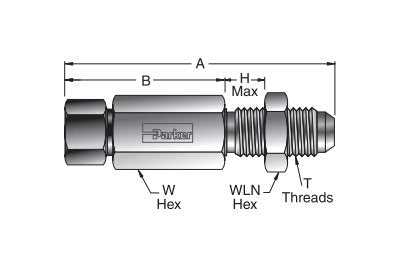

Dimensions 37 Flare Adapter
1/2
Dimensions A
3.44 in
Dimensions B
1.97 in
Dimensions Connection Type
MPI™ to Straight Thread
Dimensions H Max
.50 in
Dimensions Mpi Size
1/2
Dimensions T Thread
3/4 - 16
Dimensions Wln Hex
1 in
Dimensions Working Mawp Pressure
12500 psig
Dimensions W Hex
1 in
Specifications Assembly
MPI™ Fittings are assembled with standard hand tools up to 3/4" size. 1-1/2 turns past finger tight is all that is needed, 3/4 and 1 inch 316 SS tubing and 3/4 and 1 inch 2507 Tubing must be hydraulically preset. Note: All sizes can be hydraulically preset using the Parker Preset Tooling.
Specifications Dedication To Quality
Our resources and vast product line are available through our worldwide distribution network. For more information regarding our products and services, please contact your authorized Parker Instrumentation Distributor.
Specifications Engineering Standards Used
Parker Hannifin has designed all fittings and valves using the following ASME Standards and associated Safety Factors: ASME B31.1 Power Piping ASME B31.3 Process Piping
Specifications Features
Every MPI™ Fitting has the features shown below:Front ferrule with corrosion-resistant Parker Suparcase® forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tube.Back ferrule with corrosion-resistant Parker Suparcase® provides a strong mechanical hold on the tube.Longer thread area for improved resistance to pressure and load on the ferrules.Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes.Long tube-support area improves resistance to vibration and line loads.
Specifications Materials And Identification
Standard MPI™ Fittings and Valves are made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials. Tubing and fitting materials should be selected based on compatibility with the fluid or gas media.Part numbers for MPI™ Fittings use symbols that identify their style, size, and composition. 2507 material is easily identified by a groove in the gland nut hex.
