Parker MPI™ Medium Pressure Tube Stub Fitting - X42HT7
Parker MPI™ Medium Pressure Tube Stub Fitting - X42HT7
SKU:FIT-fdbc21
Secure and gas-tight, Parker MPI™ Medium Pressure Tube Stub Fitting for pressures up to 15,000 psi. Corrosion-resistant, leak-free with easy assembly.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Parker MPI™ Medium Pressure Tube Stub Fitting - X42HT7
$89.99
Quantity: 1
Claim Your Seller Account
Parker MPI™ Medium Pressure Tube Stub Fitting - X42HT7
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

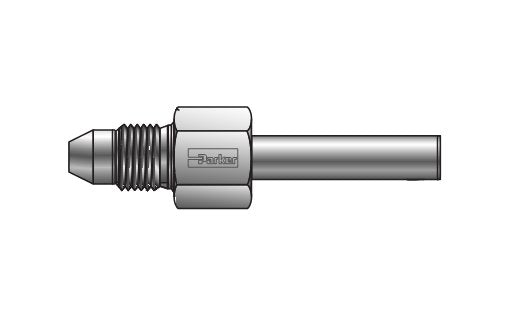

The Parker Hannifin MPI™ X42HT7 Medium Pressure Tube Stub Fitting is engineered for secure and gas-tight connections, ideal for applications in off-shore oil and gas exploration, research labs, and facilities operating at pressures up to 15,000 psi. Featuring corrosion-resistant Parker Suparcase® ferrules, a longer thread area for improved pressure resistance, and a molybdenum disulfide-coated nut for easier assembly, this fitting ensures leak-free performance. Made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials, it meets stringent industry standards and is compatible with various tubing materials, offering reliability and durability in demanding environments.
Product Specifications

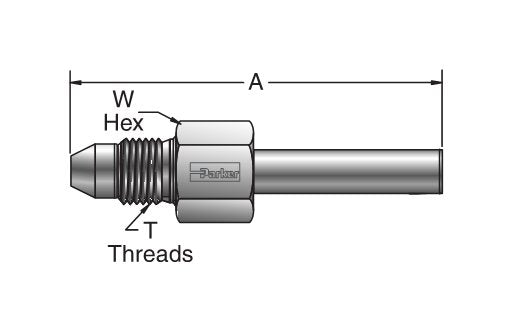

Dimensions A
3.18 in
Dimensions Connection Type
Straight Thread to Tube
Dimensions Medium Pressure Adapter Size
1/4
Dimensions Mpi Tube Stub
1/2
Dimensions T Thread
7/16 - 20
Dimensions Working Mawp Pressure
15000 psig
Dimensions W Hex
5/8 in
Specifications Assembly
MPI™ Fittings are assembled with standard hand tools up to 3/4" size. 1-1/2 turns past finger tight is all that is needed, (3/4" and 1" sizes on 2507 Super Duplex tubing must be hydraulically set). All sizes can be preset with a Parker Hydraulic Preset Tool.
Specifications Dedication To Quality
Our resources and vast product line are available through our worldwide distribution network. For more information regarding our products and services, please contact your authorized Parker Instrumentation Distributor.
Specifications Features
Every MPI™ Fitting has the features shown below:Front ferrule with corrosion-resistant Parker Suparcase® forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tubeBack ferrule with corrosion-resistant Parker Suparcase® provides a strong mechanical hold on the tube.Longer thread area for improved resistance to pressure and load on the ferrules.Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes.Long tube-support area improves resistance to vibration and line loads.
Specifications Materials And Identification
Standard MPI™ Fittings and Valves are made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials. Tubing and fitting materials should be selected based on compatibility with the fluid or gas media.Part numbers for MPI™ Fittings use symbols that identify their style, size, and composition. 2507 material is easily identified by a groove in the gland nut hex.
Specifications Mpi Fittings Pressure Ratings
The maximum pressure rating is marked on each fitting. MPI™ working pressures to be determined by selected tubing. Please see tables on pages 10 and 11 for specific working pressures.Size 4 (1/4") MPI™ - to 15,000 psiSize 6 (3.8") MPI™ - to 15,000 psiSize 8 (1/2") MPI™ - to 15,000 psiSize 9 (9/16") MPI™ - to 15,000 psiSize 12 (3/4") MPI™ - to 15,000 psiSize 16 (1") MPI™ - to 12,500 psi using 316 SS MPI tubing, 15,000 psi using MPI 2507 Super Duplex tubing with -XF Ferrule OptionNote: Tube and pipe thread sizes are designated by the number of sixteenths of an inch (1/4" tube = 4/16" or 4). See "How to Order" on page 8 for additional information.
