Parker MPI™ Tube Port Connector - T7HBT7
Parker MPI™ Tube Port Connector - T7HBT7
SKU:FIT-fbc193
Discover the Parker MPI™ Tube Port Connector - T7HBT7 for secure, gas-tight fittings in medium pressure applications. Features corrosion-resistant components for reliable performance.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Parker MPI™ Tube Port Connector - T7HBT7
$99.99
Quantity: 1
Claim Your Seller Account
Parker MPI™ Tube Port Connector - T7HBT7
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

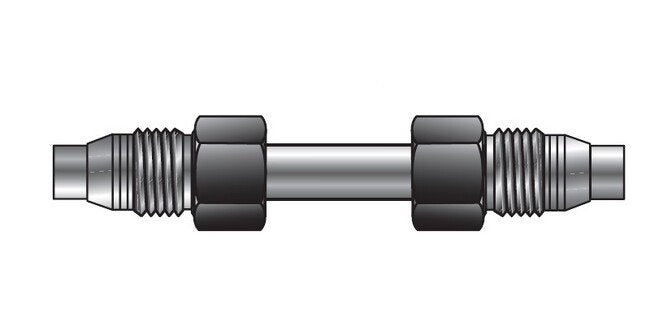

The Parker MPI™ Tube Port Connector in the T7HBT7 model is a medium pressure compression fitting designed for secure and gas-tight connections. Ideal for applications requiring up to 15,000 psi pressure, this connector is suitable for various industries including off-shore oil and gas platforms, research labs, and more. Made of high-quality materials such as 316 SS or optional 2507 Super Duplex, each fitting comes complete with ferrules and compression gland nut. The T7HBT7 features corrosion-resistant ferrules, longer thread area for improved pressure resistance, and molybdenum disulfide-coated nut for easy assembly and multiple remakes.
Product Specifications
Dimensions Connection Type
MPI™ Tube

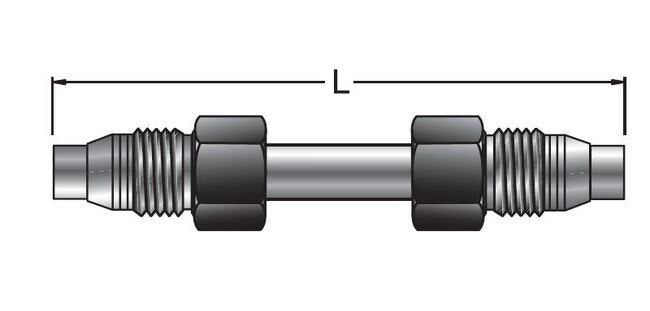

Dimensions L
10.00 in
Dimensions Tube Size
3/8
Specifications Assembly
MPI™ Fittings are assembled with standard hand tools up to 3/4" size. 1-1/2 turns past finger tight is all that is needed, 3/4 and 1 inch 316 SS tubing and 3/4 and 1 inch 2507 Tubing must be hydraulically preset. Note: All sizes can be hydraulically preset using the Parker Preset Tooling.
Specifications Dedication To Quality
Our resources and vast product line are available through our worldwide distribution network. For more information regarding our products and services, please contact your authorized Parker Instrumentation Distributor.
Specifications Engineering Standards Used
Parker Hannifin has designed all fittings and valves using the following ASME Standards and associated Safety Factors: ASME B31.1 Power Piping ASME B31.3 Process Piping
Specifications Features
Every MPI™ Fitting has the features shown below:Front ferrule with corrosion-resistant Parker Suparcase® forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tube.Back ferrule with corrosion-resistant Parker Suparcase® provides a strong mechanical hold on the tube.Longer thread area for improved resistance to pressure and load on the ferrules.Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes.Long tube-support area improves resistance to vibration and line loads.
Specifications Materials And Identification
Standard MPI™ Fittings and Valves are made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials. Tubing and fitting materials should be selected based on compatibility with the fluid or gas media. Part numbers for MPI™ Fittings use symbols that identify their style, size, and composition. 2507 material is easily identified by a groove in the gland nut hex.
