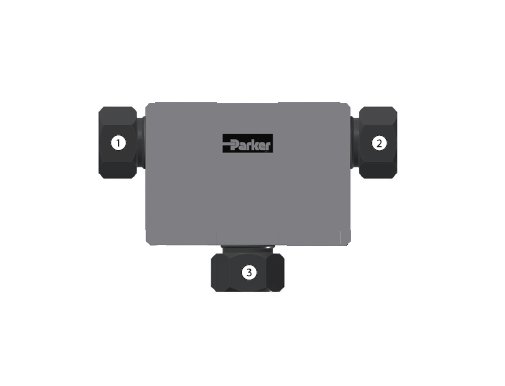

Parker MPI™ Union Tee - 1" x 1" x 3/4" - 12500 psig
Parker MPI™ Union Tee - 1" x 1" x 3/4" - 12500 psig
SKU:FIT-2bb1fd
Secure, gas-tight Parker MPI™ Union Tee for extreme pressures. Corrosion-resistant materials and precision engineering for industry reliability.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Parker MPI™ Union Tee - 1" x 1" x 3/4" - 12500 psig
$69.99
Quantity: 1
Claim Your Seller Account
Parker MPI™ Union Tee - 1" x 1" x 3/4" - 12500 psig
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker MPI™ Union Tee is a vital component engineered to ensure secure, gas-tight connections under extreme pressures of up to 12500 psig. Ideal for various industries like off-shore oil exploration and research labs, this Union Tee features corrosion-resistant Parker Suparcase® ferrules, a longer thread area for enhanced pressure resistance, and a molybdenum disulfide-coated nut for galling prevention. With Heat Code Traceable 316 SS construction or optional 2507 Super Duplex materials, each unit meets stringent industry standards for reliability and performance.

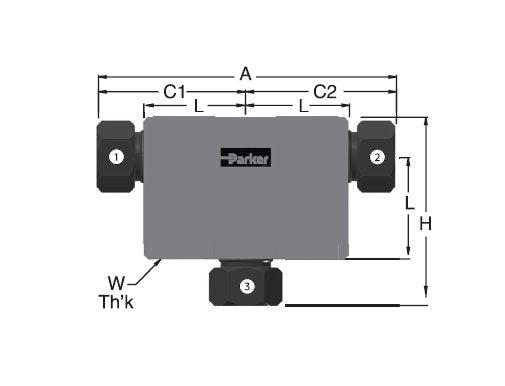

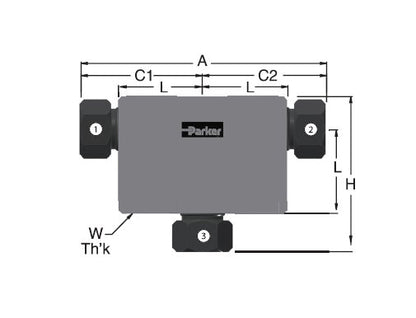

Product Specifications
Dimensions A
7.26 in
Dimensions C1
3.63 in
Dimensions C2
3.63 in
Dimensions Connection Type
MPI™ x MPI™ x MPI™
Dimensions H
4.26 in
Dimensions L
2.50 in
Dimensions Mpi Size 1
1
Dimensions Mpi Size 2
1
Dimensions Mpi Size 3
3/4
Dimensions Working Mawp Pressure
12500 psig
Dimensions W Thk
1 3/4 in
Dimensions Xf Option
15000 psig
Specifications Assembly
MPI™ Fittings are assembled with standard hand tools up to 3/4" size. 1-1/2 turns past finger tight is all that is needed, (3/4" and 1" sizes on 2507 Super Duplex tubing must be hydraulically set). All sizes can be preset with a Parker Hydraulic Preset Tool.
Specifications Dedication To Quality
Our resources and vast product line are available through our worldwide distribution network. For more information regarding our products and services, please contact your authorized Parker Instrumentation Distributor.
Specifications Engineering Standards Used
The maximum pressure rating is marked on each fitting. MPI™ working pressures to be determined by selected tubing. Please see tables on pages 10 and 11 for specific working pressures.Size 4 (1/4") MPI™ - to 15,000 psiSize 6 (3.8") MPI™ - to 15,000 psiSize 8 (1/2") MPI™ - to 15,000 psiSize 9 (9/16") MPI™ - to 15,000 psiSize 12 (3/4") MPI™ - to 15,000 psiSize 16 (1") MPI™ - to 12,500 psi using 316 SS MPI tubing, 15,000 psi using MPI 2507 Super Duplex tubing with -XF Ferrule OptionNote: Tube and pipe thread sizes are designated by the number of sixteenths of an inch (1/4” tube = 4/16” or 4). See "How to Order" on page 8 for additional information.
Specifications Features
Every MPI™ Fitting has the features shown below:Front ferrule with corrosion-resistant Parker Suparcase® forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tube.Back ferrule with corrosion-resistant Parker Suparcase® provides a strong mechanical hold on the tube.Longer thread area for improved resistance to pressure and load on the ferrules.Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes.Long tube-support area improves resistance to vibration and line loads.
Specifications Materials And Identification
Standard MPI™ Fittings and Valves are made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials. Tubing and fitting materials should be selected based on compatibility with the fluid or gas media.Part numbers for MPI™ Fittings use symbols that identify their style, size, and composition. 2507 material is easily identified by a groove in the gland nut hex.
