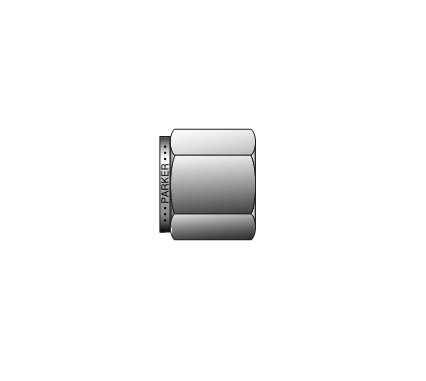

Parker Pipe Cap CP - FNPT Thread, Brass & Stainless Steel Options
Parker Pipe Cap CP - FNPT Thread, Brass & Stainless Steel Options
SKU:FIT-07539d
Reliable Parker Pipe Cap CP for leak-free connections in industrial applications. Precision machined with high-quality materials. Compliant with ANSI standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Parker Pipe Cap CP - FNPT Thread, Brass & Stainless Steel Options
$29.99
Quantity: 1
Claim Your Seller Account
Parker Pipe Cap CP - FNPT Thread, Brass & Stainless Steel Options
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Pipe Cap CP is an essential component for leak-free connections in various industrial applications. Precision machined from high-quality materials including steel and brass, these fittings meet stringent quality standards. Designed for instrumentation connections, they offer reliability with working pressures up to 6800 psig. Packaged in sealed boxes for cleanliness, these fittings comply with ANSI standards, ensuring optimal performance and durability.
Product Specifications
Dimensions Connection Type
FNPT

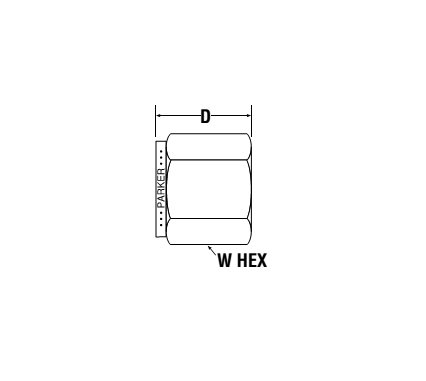

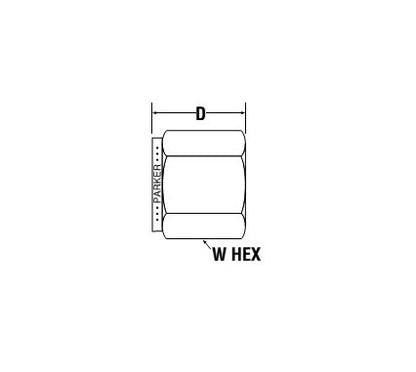

Dimensions D
.75 in
Dimensions Npt Thread Female
1/8
Dimensions Working Pressure Brass
4000 psig
Dimensions Working Pressure Stainless Steel
6400 psig
Dimensions Working Pressure Steel
6800 psig
Dimensions W Hex
9/16 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
