Parker Pneumatic Directair 6 Series Lever Operated Solenoid Valves

Name: Parker Pneumatic Directair 6 Series Lever Operated Solenoid Valves
Brand: Jamieson Equipment Co., Inc.
SKU: AIR-338a92
Price: 129.99 USD
Availability: OutOfStock

SKU:AIR-338a92

Precisely control double-acting cylinders with Parker Pneumatic Directair Solenoid Valves. Lever-operated with spring return, ideal for industrial pneumatic applications.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

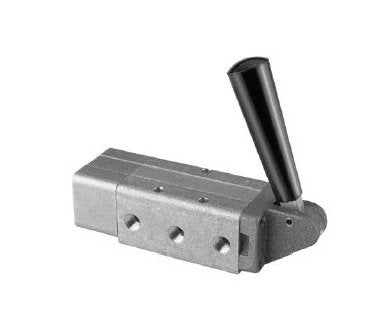

The Parker Pneumatic Directair 6 Series Lever Operated Solenoid Valves are crafted for precision in controlling double-acting cylinders. Featuring lever-operated, spring return functionality, these 3/8 inch port size valves ensure seamless shifting between normal and actuated positions. Designed for versatile mounting options, these valves uphold superior performance and reliability. With dimensions meeting rigorous standards, these valves guarantee optimal pneumatic control for industrial applications.

Product Specifications

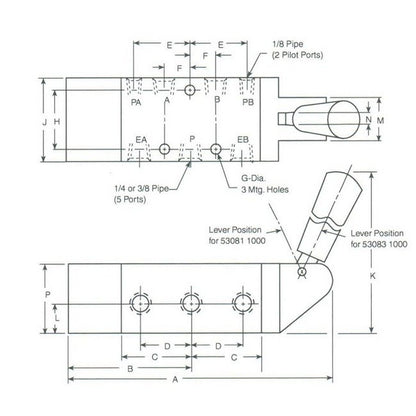

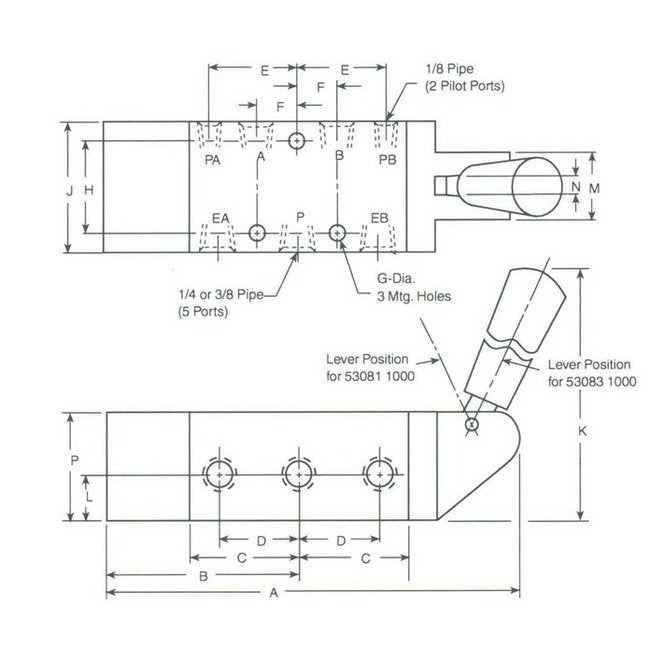

Specifications Dimension A

5.26 in | 180 mm

Specifications Dimension B

2.63 in | 84 mm

Specifications Dimension C

1.19 in | 48 mm

Specifications Dimension D

0.69 in | 35 mm

Specifications Dimension E

0.88 in | 38 mm

Specifications Dimension F

0.50 in | 18 mm

Specifications Dimension G

0.27 in | 7 mm

Specifications Dimension H

1.63 in | 41 mm

Specifications Dimension J

2.25 in | 57 mm

Specifications Dimension K

1.84 in | 152 mm

Specifications Dimension L

0.78 in | 20 mm

Specifications Dimension M

25 mm | 1.00 in

Specifications Dimension N

10 mm | 0.39 in

Specifications Dimension P

1.84 in | 47 mm

Specifications Function

Lever Operated, Spring Return

Specifications Manufacturer

Parker Pneumatic

Specifications Port Size

3/8 in

Parker Pneumatic Directair 6 Series Lever Operated Solenoid Valves
