Parker Pneumatic Directair 6 Series Lever Operated Solenoid Valves

Name: Parker Pneumatic Directair 6 Series Lever Operated Solenoid Valves
Brand: Jamieson Equipment Co., Inc.
SKU: AIR-820a07
Price: 89.99 USD
Availability: OutOfStock

SKU:AIR-820a07

Enhance cylinder operation with Parker Pneumatic Lever Operated Solenoid Valves. Detented for precise control and easy mounting options. Trusted quality.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

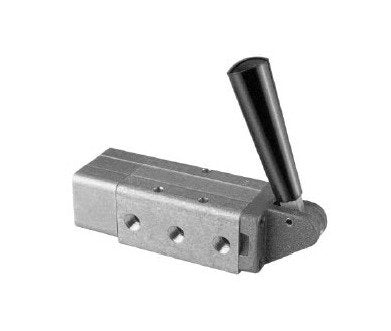

The Parker Pneumatic Directair 6 Series Lever Operated Solenoid Valves are meticulously designed for operating double-acting cylinders with precision. Featuring a detented lever operation, these valves offer seamless control transitioning between normal and actuated positions. With a 3/8 inch port size and compact dimensions, they are versatile for inline or surface mounting. Engineered by Parker Pneumatic, a trusted manufacturer, these valves assure reliable performance and durability for industrial applications.

Product Specifications

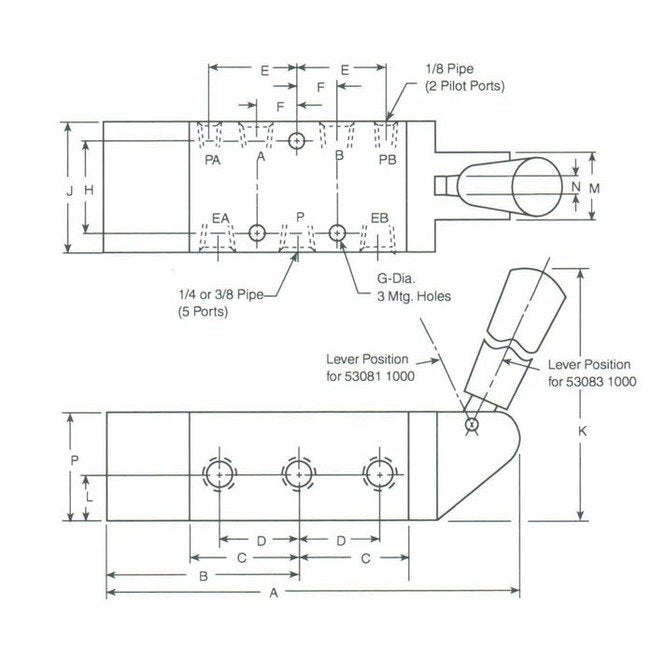

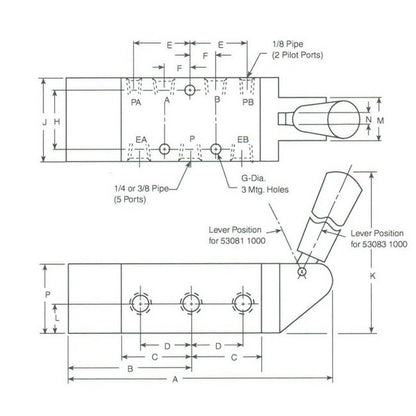

Specifications Dimension A

5.26 in | 180 mm

Specifications Dimension B

2.63 in | 84 mm

Specifications Dimension C

1.19 in | 48 mm

Specifications Dimension D

0.69 in | 35 mm

Specifications Dimension E

0.88 in | 38 mm

Specifications Dimension F

0.50 in | 18 mm

Specifications Dimension G

0.27 in | 7 mm

Specifications Dimension H

1.63 in | 41 mm

Specifications Dimension J

2.25 in | 57 mm

Specifications Dimension K

1.84 in | 152 mm

Specifications Dimension L

0.78 in | 20 mm

Specifications Dimension M

25 mm | 1.00 in

Specifications Dimension N

10 mm | 0.39 in

Specifications Dimension P

1.84 in | 47 mm

Specifications Function

Lever Operated, Detented

Specifications Manufacturer

Parker Pneumatic

Specifications Port Size

3/8 in

Parker Pneumatic Directair 6 Series Lever Operated Solenoid Valves
