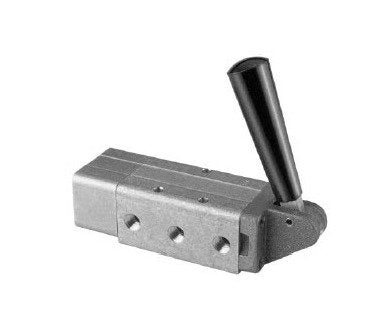

Parker Pneumatic Directair 6 Series Lever Operated Solenoid Valves

Name: Parker Pneumatic Directair 6 Series Lever Operated Solenoid Valves
Brand: Jamieson Equipment Co., Inc.
SKU: AIR-cde4a9
Price: 49.99 USD
Availability: OutOfStock

SKU:AIR-cde4a9

Enhance cylinder performance with Parker Pneumatic 6 Series Lever Operated Valves. Precise, reliable, and versatile for industrial needs.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Parker Pneumatic Directair 6 Series Lever Operated Solenoid Valves are precision-engineered for seamless operation of double-acting cylinders. Featuring a lever-operated spring return mechanism and a 1/4-inch port size, these valves ensure efficient pressure distribution for optimal performance. With dimensions meeting industry standards and versatile mounting options, these valves are suitable for a wide range of pneumatic applications.

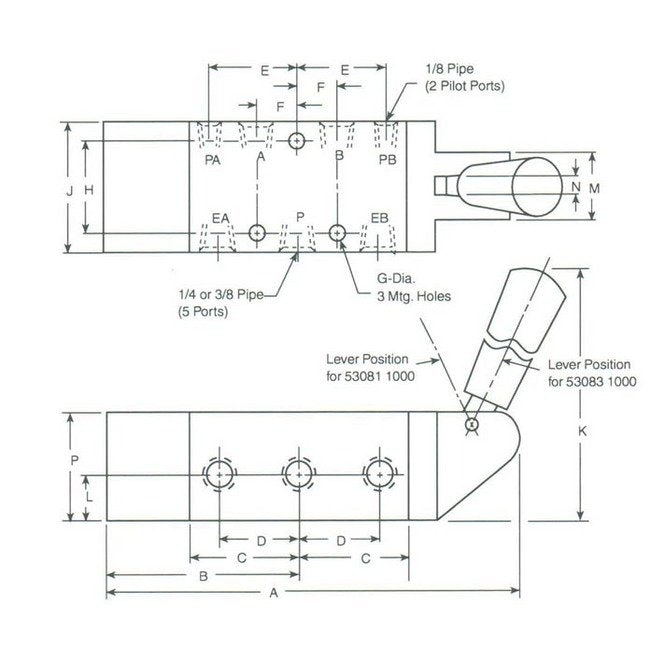

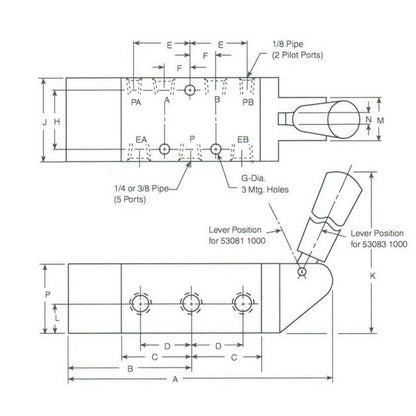

Product Specifications

Specifications Dimension A

5.26 in | 180 mm

Specifications Dimension B

2.63 in | 84 mm

Specifications Dimension C

1.19 in | 48 mm

Specifications Dimension D

0.69 in | 35 mm

Specifications Dimension E

0.88 in | 38 mm

Specifications Dimension F

0.50 in | 18 mm

Specifications Dimension G

0.27 in | 7 mm

Specifications Dimension H

1.63 in | 41 mm

Specifications Dimension J

2.25 in | 57 mm

Specifications Dimension K

1.84 in | 152 mm

Specifications Dimension L

0.78 in | 20 mm

Specifications Dimension M

25 mm | 1.00 in

Specifications Dimension N

10 mm | 0.39 in

Specifications Dimension P

1.84 in | 47 mm

Specifications Function

Lever Operated, Spring Return

Specifications Manufacturer

Parker Pneumatic

Specifications Port Size

1/4 in

Parker Pneumatic Directair 6 Series Lever Operated Solenoid Valves
