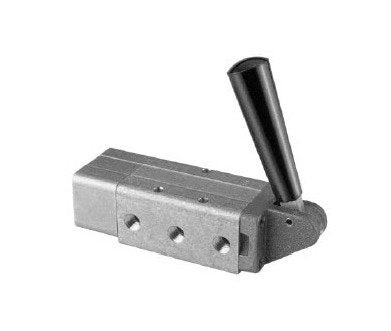

Parker Pneumatic Directair 6 Series Lever Operated Solenoid Valves

Name: Parker Pneumatic Directair 6 Series Lever Operated Solenoid Valves
Brand: Jamieson Equipment Co., Inc.
SKU: AIR-f1565e
Price: 89.99 USD
Availability: OutOfStock

SKU:AIR-f1565e

Optimize double-acting cylinder control with Parker Pneumatic Directair 6 Series Lever Operated Valves, featuring detented operation and reliable performance.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Parker Pneumatic Directair 6 Series Lever Operated Solenoid Valves are engineered for precise control of double-acting cylinders. Featuring detented lever operation, these valves offer seamless shifting between normal and actuated positions. With a port size of 1/4 inch, and dimensions meeting industry standards, these valves ensure reliable performance in any mounting orientation. Trust Parker Pneumatic for superior pneumatic solutions that excel in efficiency and durability.

Product Specifications

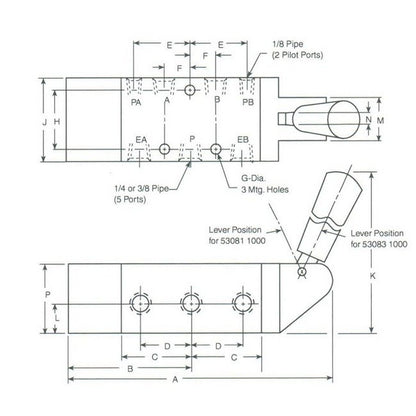

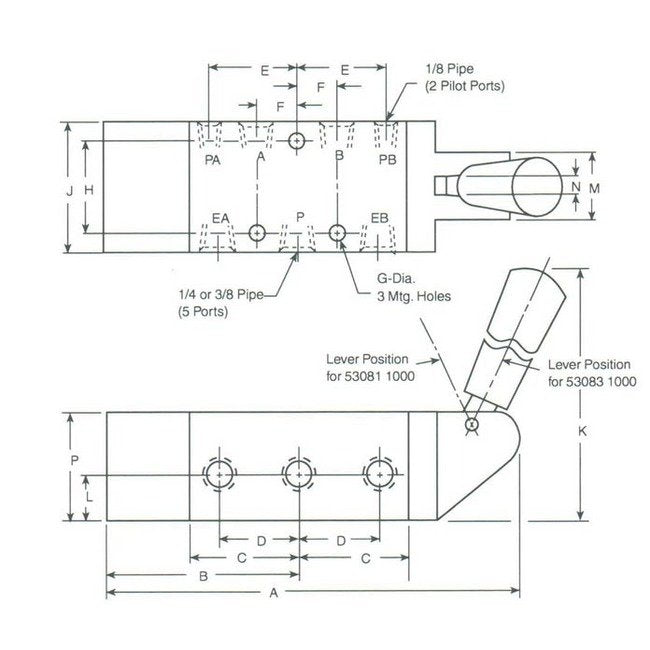

Specifications Dimension A

5.26 in | 180 mm

Specifications Dimension B

2.63 in | 84 mm

Specifications Dimension C

1.19 in | 48 mm

Specifications Dimension D

0.69 in | 35 mm

Specifications Dimension E

0.88 in | 38 mm

Specifications Dimension F

0.50 in | 18 mm

Specifications Dimension G

0.27 in | 7 mm

Specifications Dimension H

1.63 in | 41 mm

Specifications Dimension J

2.25 in | 57 mm

Specifications Dimension K

1.84 in | 152 mm

Specifications Dimension L

0.78 in | 20 mm

Specifications Dimension M

25 mm | 1.00 in

Specifications Dimension N

10 mm | 0.39 in

Specifications Dimension P

1.84 in | 47 mm

Specifications Function

Lever Operated, Detented

Specifications Manufacturer

Parker Pneumatic

Specifications Port Size

1/4 in

Parker Pneumatic Directair 6 Series Lever Operated Solenoid Valves
