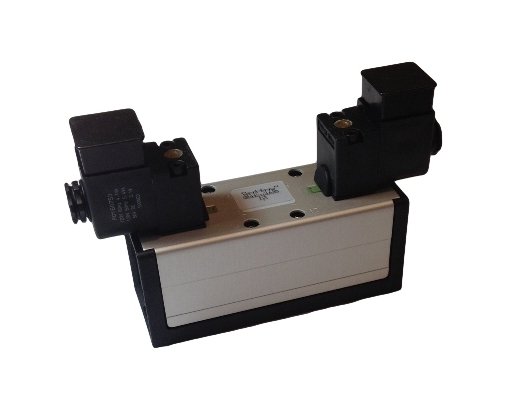

Parker Pneumatic Isomax Double Solenoid Valve APB 3-Position CE

Name: Parker Pneumatic Isomax Double Solenoid Valve APB 3-Position CE
Brand: Jamieson Equipment Co., Inc.
SKU: AIR-41a619
Price: 199.99 USD
Availability: OutOfStock

SKU:AIR-41a619

High-tech ceramic Isomax double solenoid valve, ISO compliant, 4.00 Cv flow rating.

$199.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Parker Pneumatic Isomax Double Solenoid Valve is a high-tech ceramic switching technology valve designed to meet ISO 15407-1, VDMA 24563, and ISO 5599-1 standards. With a flow rating of 4.00 Cv, this valve offers exceptional reliability with over 100 million operations, low sensitivity to air quality changes, and high performance due to its slide valve concept. It features stable long-lasting performances, corrosion-free modern design, and is suitable for both lubricated and non-lubricated air. The valve provides dual pressure options, switchable selector for internal or external pilot supply, and is ideal for vacuum operations.

Product Specifications

Specifications Flow Rating Cv

4.00

Specifications Iso Size

DX3

Specifications Manufacturer

Parker Pneumatic

Specifications Port Size

1/2 in

Specifications Type

APB

Specifications Voltage

120 VAC

Parker Pneumatic Isomax Double Solenoid Valve APB 3-Position CE
