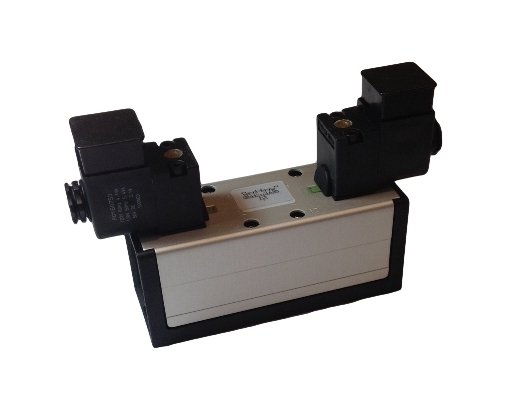

Parker Pneumatic Isomax Double Solenoid Valve CE 3-Position DX2
Parker Pneumatic Isomax Double Solenoid Valve CE 3-Position DX2
SKU:AIR-4ff2db
High-performance Parker Pneumatic Isomax Valve CE 3-Position DX2 with excellent reliability, high flow ratios, and low sensitivity to air quality changes.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Parker Pneumatic Isomax Double Solenoid Valve CE 3-Position DX2
$289.99
Quantity: 1
Claim Your Seller Account
Parker Pneumatic Isomax Double Solenoid Valve CE 3-Position DX2
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Pneumatic Isomax Double Solenoid Valve CE 3-Position DX2 is a high-performance directional control valve designed to meet rigorous industry standards, including ISO 15407-1, VDMA 24563, and ISO 5599-1. With flows ranging from 0.55 Cv to 4.15 Cv, this valve offers excellent reliability with over 100 million operations, compatibility with lubricated or non-lubricated air, and low sensitivity to air quality changes. The high-tech ceramic switching technology ensures stable, long-lasting performance with a slide valve concept that allows high flow/size ratios and short response times. Ideal for pneumatic and electrical actuation, the Isomax valve is corrosion-free, features a modern design, and supports vacuum operations and dual pressure.
Product Specifications
Specifications Flow Rating Cv
2.40
Specifications Iso Size
DX2
Specifications Manufacturer
Parker Pneumatic
Specifications Port Size
3/8 in
Specifications Type
CE
Specifications Voltage
120 VAC
