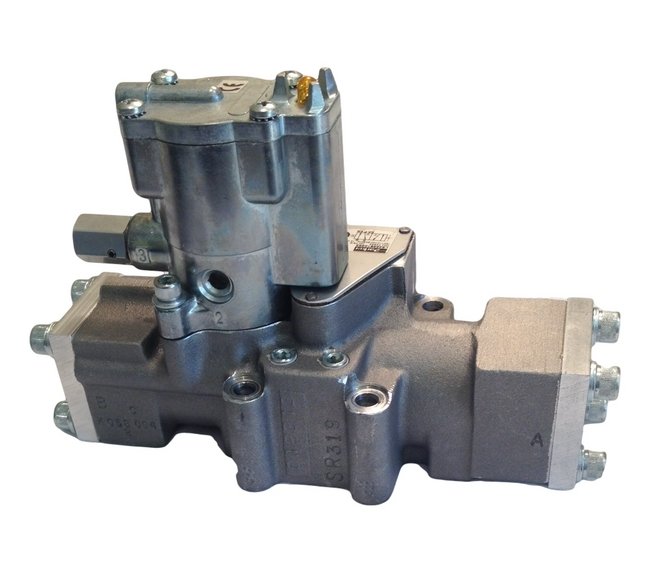

Parker Pneumatic Speed King SK-200 Series Solenoid Valves

Name: Parker Pneumatic Speed King SK-200 Series Solenoid Valves
Brand: Jamieson Equipment Co., Inc.
SKU: AIR-294edc
Price: 129.99 USD
Availability: OutOfStock

SKU:AIR-294edc

Maximize efficiency with Parker Pneumatic Speed King Solenoid Valves - Fast, Reliable, CSA Approved!

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Parker Pneumatic Speed King SK-200 Series 4-Way, 5-Port, 2-Position Solenoid Valves offer exceptional performance and reliability. With a direct pipe ported valve style and continuous service solenoid duty cycle, these valves ensure fast response times and minimal downtime. The Plug-In Design simplifies maintenance and installation, while the interchangeable solenoids provide versatility. Indicator lights, locking manual overrides, and encapsulated coils enhance ease of use and longevity. Designed for maximum efficiency, these valves feature oversized flow areas, synthetic rubber O-ring seals for superior wear resistance, and precision ground spools. With CSA approval, they meet rigorous industry standards for general purpose use.

Product Specifications

Specifications Duty Cycle

Continuous Service Solenoid

Specifications Enclosure Class

Standard (NEMA 1 & 12) or Remote

Specifications Lead Length

19 in

Specifications Manufacturer

Parker Pneumatic

Specifications Nominal Cv

5.5

Specifications Operator

Solenoid

Specifications Operator Option

Solenoid w/Locking Override

Specifications Service

Lubricated

Specifications Size

3/4" NPT Inlet, Cyl. & Exh.

Specifications Type

Single

Specifications Valve Style

Direct Pipe Ported

Specifications Voltage

24 VDC

Parker Pneumatic Speed King SK-200 Series Solenoid Valves
