Parker Pneumatic Valvair II Solenoid Valve

Name: Parker Pneumatic Valvair II Solenoid Valve
Brand: Jamieson Equipment Co., Inc.
SKU: AIR-0fd47a
Price: 129.99 USD
Availability: OutOfStock

SKU:AIR-0fd47a

Enhance industrial operations with the Parker Pneumatic Valvair II Solenoid Valve - exceptional performance and adaptability for diverse applications.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

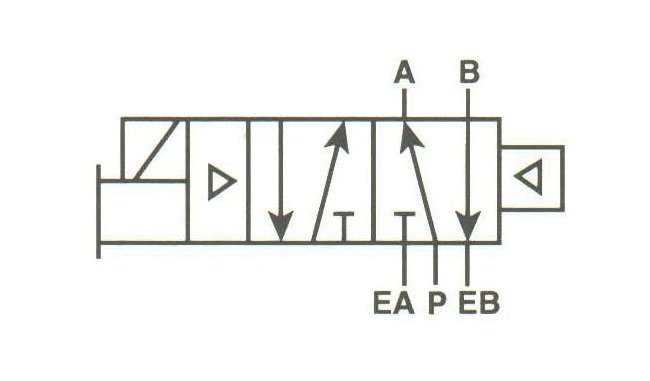

The Parker Pneumatic Valvair II Series 4-Way, 5-Port, 2-Position Plug-In Solenoid Valve is a robust and versatile valve designed for general to harsh industrial applications, such as concrete aggregate plants and steel mills. With flow factors reaching up to 12 Cv, this valve offers exceptional performance. It can be installed as a single inline or subbase valve for point-of-use applications, or mounted on segmented manifolds for centralized setups. Featuring a range of operators from air-piloted to solenoid air-piloted, with direct conduit or junction box electrical connections, this valve is highly adaptable. The Valvair II valves are field-convertible from standard internal to external pilot-operated service and are suitable for non-lube operation. Equipped with dynamic urethane O-rings and Nituf-coated aluminum spools, these valves offer improved lubrication retention and low-friction operation. The option to incorporate sandwich pressure regulators allows for precise control of air pressure at each valve application point, enhancing overall efficiency and functionality.

Product Specifications

Specifications Duty Cycle

Standard Service Solenoid or Remote

Specifications Enclosure Class

Standard (NEMA 1 & 12) or Remote

Specifications Manufacturer

Parker Pneumatic

Specifications Nominal Cv

4.8

Specifications Operator

Remote

Specifications Operator Option

Solenoid w/Light (120VAC, 24VDC) & Non-Locking Override

Specifications Service

Lubricated Non-Lubricated Service

Specifications Size

3/8" Basic

Specifications Type

Single

Specifications Valve Style

Plug -In

Specifications Voltage

12 VDC
