Parker Poly-Mate PM/PXD Filter Cartridges
Parker Poly-Mate PM/PXD Filter Cartridges
SKU:DEP-bcfd5c
Experience quality filtration with Parker Poly-Mate PM/PXD Cartridges, ideal for food & beverage applications
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Parker Poly-Mate PM/PXD Filter Cartridges
$45.99
Quantity: 1
Claim Your Seller Account
Parker Poly-Mate PM/PXD Filter Cartridges
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

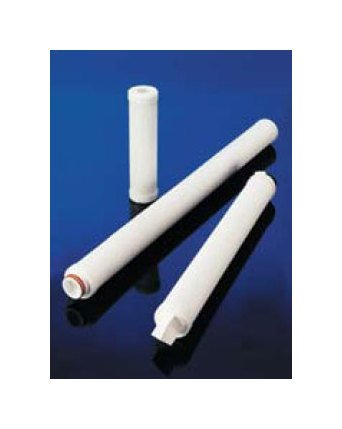

The Parker Poly-Mate PM/PXD Cartridges offer top-tier filtration for food and beverage applications, combining polypropylene meltblown and spunbonded media for superior surface area and non-fiber-releasing filtration. With all-polypropylene construction ensuring high chemical resistance, these cartridges are designed for reliability and efficiency. Featuring high pleated surface area for extended service life, optional stainless steel O-ring inserts for added strength, and FDA approval for potable liquid contact, these cartridges provide critical filtration support in demanding environments.
Product Specifications
Applications 0
Food & BeverageDeionized waterR.O. membrane prefiltrationProcess water
Benefits 0
High efficiency rated for critical food and beverage applications (99% efficiency)High pleated surface area for extended service life, low pressure drop and high flow capacityOptional stainless steel O-ring adapter inserts provide added strength for in situ sterilization. Poly-Mate⢠Xtra Duty cartridges are available with backwashable construction, reducing replacement maintenance and cartridge disposal costsPoly-Mate⢠Xtra Duty (PXD) cartridge features glass-filled polypropylene core for high temperature and high pressure use with rigid outer cage supporting pleated media in backwash applicationsAll materials of construction are FDA listed as acceptable for potable and edible liquid contact according to CFR Title 21.One-piece, continuous to 40 in length, integrally sealed, pleated filter media
MATERIALS OF CONSTRUCTION CAGE Material
Polypropylene Netting
Materials Of Construction Filter Media Material
Polypropylene
Materials Of Construction Support Core Material
Polypropylene
Materials Of Construction Support Layers
Polypropylene
Note 0
Specifications are subject to change without notification.Poly-Mate⢠is a trademark of Parker Hannifin Corporation.Viton® is a registered trademark of E.I. DuPont de Nemours & Co., Inc.
Recommended Operating Conditions Changeout P
35 psid | 2.4 bar
Recommended Operating Conditions Maximum P 200f 93c
10 psid | 0.7 bar
Recommended Operating Conditions Maximum P 70f 21c
60 psid | 4.1 bar
Recommended Operating Conditions Maximum Temperature
200 ºF | 93 ºC
Specifications Cartridge Code
Standard
Specifications Effective Filtration Area Per 10 Inch 254 Mm
0 to 6.0 ft² | 0.6 m²
Specifications End Cap Configuration
020 O-Ring/Recessed Cap | 120 O-Ring/Recessed Cap | 213 O-Ring/Recessed Cap | 222 O-Ring/Fin | 222 O-Ring/Flat Cap | 226 O-Ring/Fin | 226 O-Ring/Flat Cap | DOE with Core Extender | Double Open End (DOE) | Ext. Core Open End/ Polypro Spring Closed End | S.S. Inserted 222 O-Ring/Closed | S.S. Inserted 226 O-Ring/Closed | S.S. Inserted 226 O-Ring/Fin | Std. Open End/ Polypro Spring Closed End
Specifications Filtration Ratings
99 %

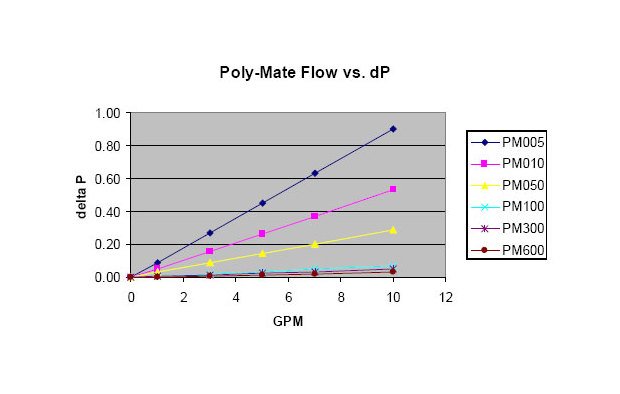

Specifications Flow Factors Psidgpm 1 Cks Per 10 Cartridge
0.0900
Specifications Maximum Recommended Flow Rate Per 10 Length 254 M
10 gpm | 9.5 lpm
Specifications Nominal Length
40 in | 1016 mm
Specifications Particle Removal Rating
0.5 µm
Specifications Seal Material
Buna-N | EPR | No Seal Material | PFA Encapsulated Viton® (O-Ring only) | Polyethylene Foam (DOE Gasket only) | Silicone | Viton®
Specifications Special Options
Bubble-Point Test | DI Water Rinse (5 minutes) | Individual Poly Bag only
Specifications Support Construction
Natural Polypropylene (All Support Components)
Technical Support And Product Information 0
Parker provides our customers with unsurpassed product consistency and cost efficiency. Our experienced professionals can help you select the right solution for your application. Orders can be emailed directly to PAFsales@parker.com. For additional information contact your local distributor. Information on product specifications, applications and chemical compatibility can be found on our web site at www.parker.com or through the Oxnard office.Parker designs and manufactures an extensive line of innovative solutions for specific applications in the Microelectronics, Biopharmaceutical, Food and Beverage, Coatings and Inks, Process and Chemical industries.
