Parker Precision Male Close Nipple Fitting - Instrument Pipe Connector
Parker Precision Male Close Nipple Fitting - Instrument Pipe Connector
SKU:FIT-1bf005
Precision male close nipple fitting for leak-free connections in instrumentation applications.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Parker Precision Male Close Nipple Fitting - Instrument Pipe Connector
$25.99
Quantity: 1
Claim Your Seller Account
Parker Precision Male Close Nipple Fitting - Instrument Pipe Connector
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Precision Male Close Nipple Fitting is engineered for precision in instrumentation applications. With leak-free connections and high-quality materials, this fitting is designed to meet the stringent demands of process control and instrumentation. It boasts precision machining from forgings and bar stock, ensuring durability and reliability. Packaged in sealed, clear plastic shrink wrapped boxes, this fitting maintains cleanliness and integrity throughout transport and storage, making it an ideal choice for industrial and institutional applications.
Product Specifications

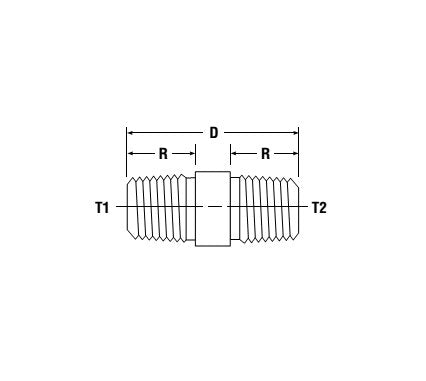

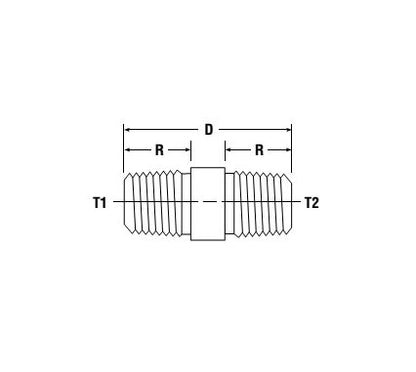

Dimensions Connection Type
MNPT to MNPT
Dimensions D
1.13 in
Dimensions Npt Thread Male
3/8
Dimensions R
.48 in
Dimensions Working Pressure Brass
4000 psig
Dimensions Working Pressure Stainless Steel
7200 psig
Dimensions Working Pressure Steel
7600 psig
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
