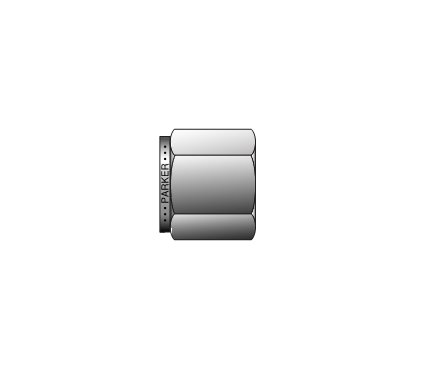

The Parker Precision Pipe Cap Connector is a top-tier solution for leak-free connections in process, power, instrumentation, and industrial applications. Crafted with meticulous precision, these fittings are available in various sizes and materials, including steel and brass, meeting stringent ASTM standards. Engineered for instrumentation applications, they ensure reliable performance and durability. Packaged in sealed boxes, adhering to ANSI standards, featuring NPT threads, and protecting exposed threads, these fittings are ideal for institutional procurement needs.
Product Specifications
Dimensions Connection Type
FNPT

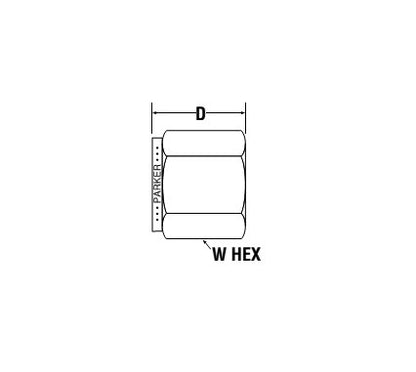

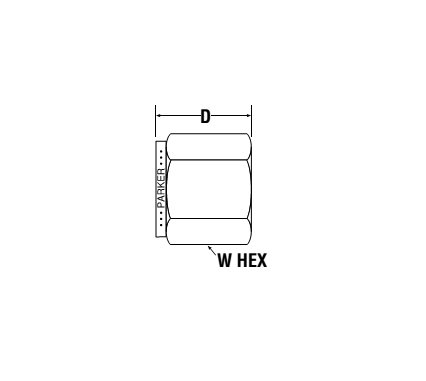

Dimensions D
1.63 in
Dimensions Npt Thread Female
1
Dimensions Working Pressure Brass
3100 psig
Dimensions Working Pressure Stainless Steel
4500 psig
Dimensions Working Pressure Steel
4800 psig
Dimensions W Hex
1 5/8 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
