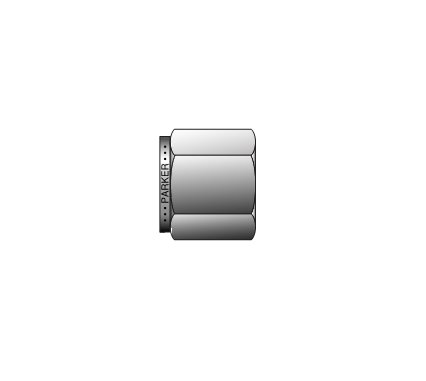

Parker Precision Pipe Cap CP
Parker Precision Pipe Cap CP
SKU:FIT-2be513
Upgrade your industrial connections with the Parker Precision Pipe Cap CP for leak-free reliability and precision engineering.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Parker Precision Pipe Cap CP
$24.99
Quantity: 1
Claim Your Seller Account
Parker Precision Pipe Cap CP
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Precision Pipe Cap CP is a top-quality instrument pipe fitting designed to provide leak-free connections for a wide range of industrial applications. Precision machined from forgings and bar stock, these fittings ensure reliability and durability. Engineered for instrumentation applications, they meet strict quality control standards and are available in various materials and sizes to suit diverse needs. Packaged in sealed, clear plastic shrink wrapped boxes for cleanliness, these fittings exceed ANSI standards for working pressures and pipe threads. Upgrade your industrial setup with the Parker Precision Pipe Cap CP for unmatched performance.
Product Specifications

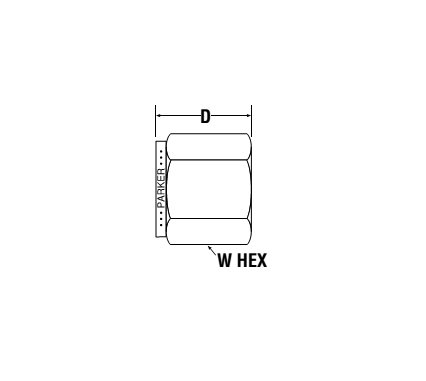

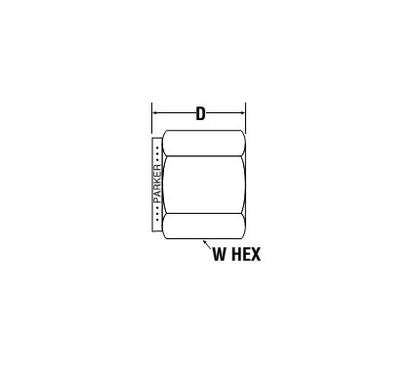

Dimensions Connection Type
FNPT
Dimensions D
1.44 in
Dimensions Npt Thread Female
3/4
Dimensions Working Pressure Brass
3000 psig
Dimensions Working Pressure Stainless Steel
4300 psig
Dimensions Working Pressure Steel
4600 psig
Dimensions W Hex
1 1/4 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
