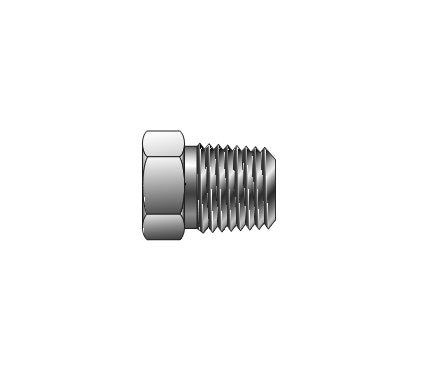

Parker Precision Reducing Bushing RB
Parker Precision Reducing Bushing RB
SKU:FIT-547fd5
High-quality Parker Precision Reducing Bushing RB for leak-free industrial connections. ANSI compliant, engineered for reliability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Parker Precision Reducing Bushing RB
$29.99
Quantity: 1
Claim Your Seller Account
Parker Precision Reducing Bushing RB
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Precision Reducing Bushing RB is a meticulously engineered instrument pipe fitting designed to deliver leak-free connections for various industrial applications. Crafted from high-quality materials including steel and brass, these fittings are precision machined for superior performance. With working pressures up to 6800 psig in steel, they are ideal for process control and instrumentation needs. Packaged in sealed, clear plastic shrink wrapped boxes, each unit upholds stringent quality control standards. Compliant with ANSI B31.1 and B31.3, and exceeding ANSI B1.20.1 requirements, these fittings ensure reliability and durability.
Ready to Grow Without Cash Flow Constraints?

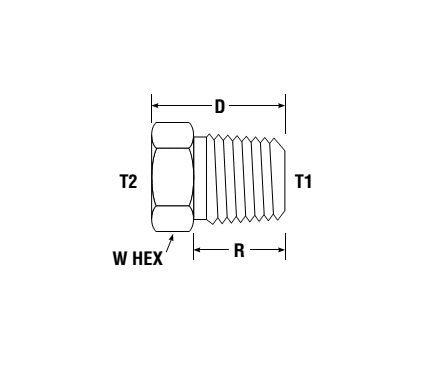

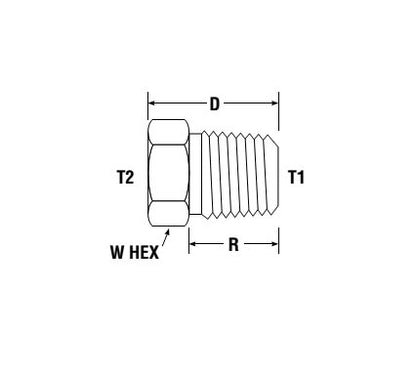

Product Specifications
Dimensions Connection Type
FNPT to MNPT
Dimensions D
1.11 in
Dimensions Npt Thread Female T2
1/8
Dimensions Npt Thread Male T1
1/2
Dimensions R
.75 in
Dimensions Working Pressure Brass
3900 psig
Dimensions Working Pressure Stainless Steel
6600 psig
Dimensions Working Pressure Steel
6800 psig
Dimensions W Hex
7/8 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
