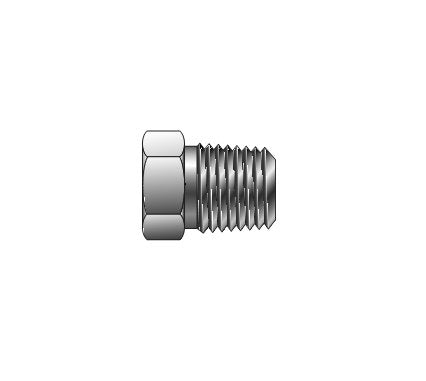

Parker Precision Reducing Bushing RB
Parker Precision Reducing Bushing RB
SKU:FIT-df8426
Precision-engineered Reducing Bushing for leak-free instrumentation connections in various industries. Superior quality and reliability.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Parker Precision Reducing Bushing RB
$25.99
Quantity: 1
Claim Your Seller Account
Parker Precision Reducing Bushing RB
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Precision Reducing Bushing RB is expertly engineered for precision instrumentation applications, offering leak-free connections in process, power, and industrial settings. Crafted from high-quality materials with meticulous precision, this reducing bushing is available in varying sizes and configurations to meet diverse needs. Parker's commitment to quality control ensures superior performance and reliability, making it an ideal choice for critical applications.
Ready to Grow Without Cash Flow Constraints?

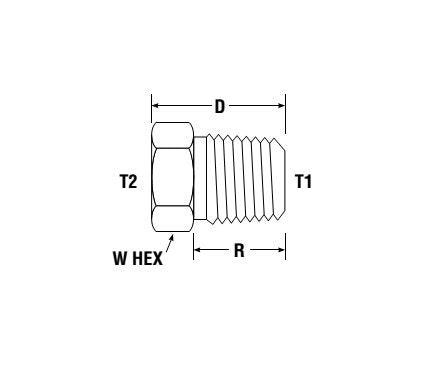

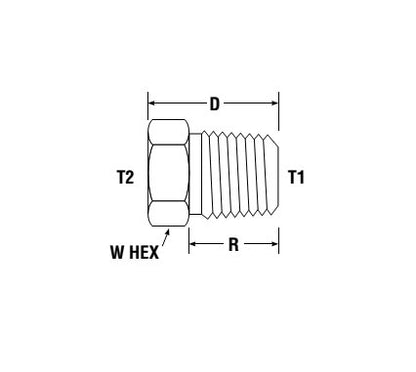

Product Specifications
Dimensions Connection Type
FNPT to MNPT
Dimensions D
1.17 in
Dimensions Npt Thread Female T2
1/2
Dimensions Npt Thread Male T1
3/4
Dimensions R
.75 in
Dimensions Working Pressure Brass
2800 psig
Dimensions Working Pressure Stainless Steel
4900 psig
Dimensions Working Pressure Steel
5200 psig
Dimensions W Hex
1 1/8 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
