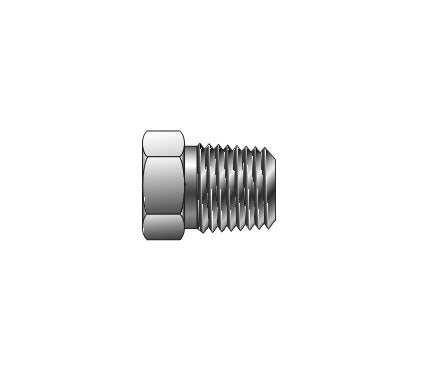

Parker Precision Reducing Bushing RB
Parker Precision Reducing Bushing RB
SKU:FIT-d95e2b
Experience leak-free connections with Parker Precision Reducing Bushing RB - ideal for instrumentation and industrial applications.
Regular price
$22.99
Regular price
Sale price
$22.99
Unit price
per
Initiate Order
Parker Precision Reducing Bushing RB
$22.99
Quantity: 1
Claim Your Seller Account
Parker Precision Reducing Bushing RB
$22.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Precision Reducing Bushing RB ensures leak-free connections in process, power, instrumentation, and industrial applications. Precision machined from forgings and bar stock, these fittings are designed for reliability and quality. With working pressures meeting Power Piping and Refiner Piping Code standards, they are ideal for instrumentation connections. Available in various materials with sizes ranging from 1/16" to 2", these fittings are packaged in sealed, plastic boxes for cleanliness and protection.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

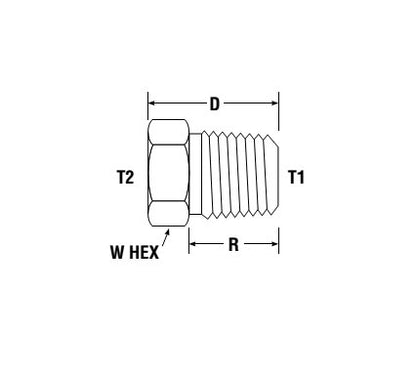

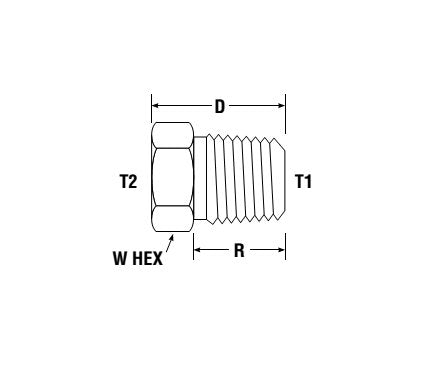

Dimensions Connection Type
FNPT to MNPT
Dimensions D
.86 in
Dimensions Npt Thread Female T2
1/16
Dimensions Npt Thread Male T1
3/8
Dimensions R
.56 in
Dimensions Working Pressure Brass
4000 psig
Dimensions Working Pressure Stainless Steel
7200 psig
Dimensions Working Pressure Steel
7600 psig
Dimensions W Hex
3/4 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
