Parker Precision Reducing Bushing RB
Parker Precision Reducing Bushing RB
SKU:FIT-5499b3
Premium Parker Precision Reducing Bushing for leak-free industrial connections. Exceeds ANSI requirements for precision and reliability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Parker Precision Reducing Bushing RB
$29.99
Quantity: 1
Claim Your Seller Account
Parker Precision Reducing Bushing RB
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

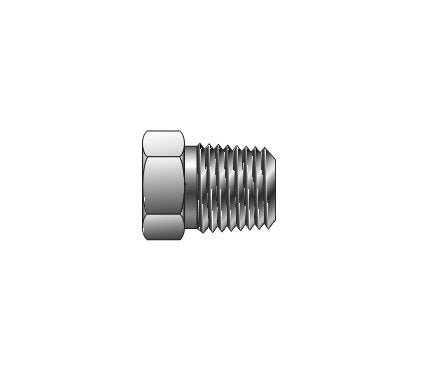

The Parker Precision Reducing Bushing RB is a premium choice for reliable, leak-free connections in industrial applications. Crafted from high-quality materials, this precision-machined fitting ensures seamless compatibility and superior performance. With a robust design meeting stringent quality standards and high working pressures, this reducing bushing is ideal for process control and instrumentation use. Packaged in sealed, clear plastic for cleanliness, it exceeds ANSI requirements, making it a top-notch solution for your piping needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

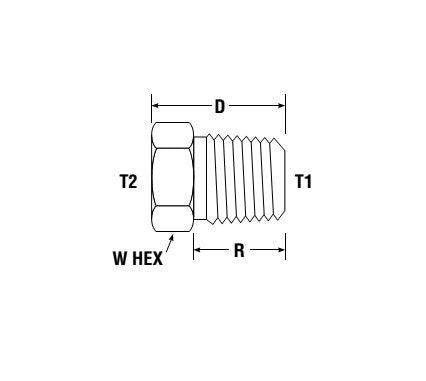

Dimensions Connection Type
FNPT to MNPT
Dimensions D
1.58 in
Dimensions Npt Thread Female T2
1 1/4
Dimensions Npt Thread Male T1
1 1/2
Dimensions R
1.00 in
Dimensions Working Pressure Brass
1700 psig
Dimensions Working Pressure Stainless Steel
2700 psig
Dimensions Working Pressure Steel
2800 psig
Dimensions W Hex
2 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
