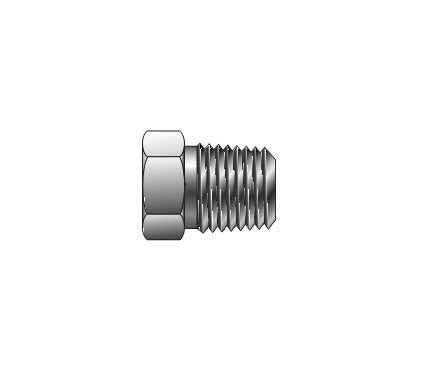

Parker Precision Reducing Bushing RB
Parker Precision Reducing Bushing RB
SKU:FIT-5a95c7
Enhance connections with Parker's Precision Reducing Bushing RB featuring leak-free precision machining and high-quality materials for lasting reliability in various applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Parker Precision Reducing Bushing RB
$29.99
Quantity: 1
Claim Your Seller Account
Parker Precision Reducing Bushing RB
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Precision Reducing Bushing RB is expertly crafted for seamless, leak-free connections in a wide range of applications, from process control to instrumentation. Manufactured to the highest quality standards, these fittings are precision machined for durability and reliability. With working pressures up to 6800 psig, and available in various materials including steel, brass, and 316 stainless steel, these fittings are engineered to exceed industry requirements. Packaged in sealed, clear plastic shrink-wrapped boxes, each fitting is protected and ready for installation, ensuring cleanliness and convenience.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

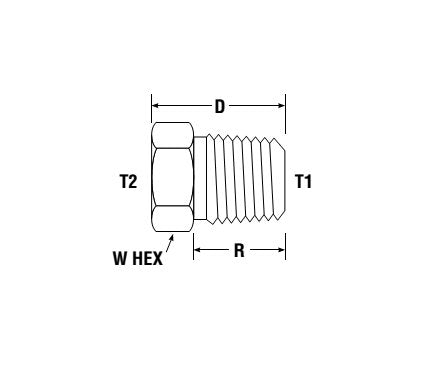

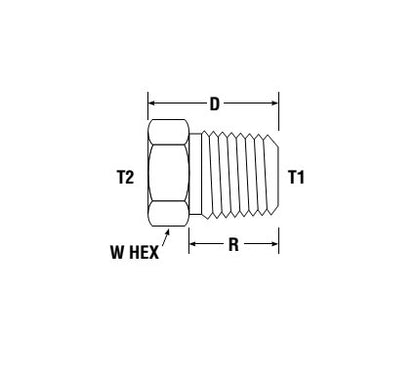

Dimensions Connection Type
FNPT to MNPT
Dimensions D
.86 in
Dimensions Npt Thread Female T2
1/8
Dimensions Npt Thread Male T1
3/8
Dimensions R
.56 in
Dimensions Working Pressure Brass
4000 psig
Dimensions Working Pressure Stainless Steel
6400 psig
Dimensions Working Pressure Steel
6800 psig
Dimensions W Hex
3/4 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
