Parker Proflow II-E Filter Cartridge
Parker Proflow II-E Filter Cartridge
SKU:PLE-256c29
Highly resistant PTFE membrane filter cartridge for ultrapure fluids and gases.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Parker Proflow II-E Filter Cartridge
$45.99
Quantity: 1
Claim Your Seller Account
Parker Proflow II-E Filter Cartridge
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Proflow II-E Filter Cartridge offers exceptional chemical resistance for ultrapure microelectronics fluids and gases. Utilizing a PTFE membrane and high purity polypropylene supports, this cartridge provides a cost-effective solution with high retention efficiency, cleanliness, and optimal flow rates. Perfect for applications requiring low moisture content in gases, it comes in dry or wet packed options for quick installation and reduced extractables. With a hydrophobic PTFE membrane, this filter ensures superior barrier performance and is ideal for bulk chemical delivery, wet etch cleaning, and ultrapure gas filtration.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications 0
Bulk chemical delivery- Acids, bases, solvents, photochemicalsWet etch and clean- Dilute acids- DI water(< 80°C) Ultrapure electronics-grade gases
Benefits 0
Good liquid and gas flow ratesWet-pack option for quick installationPTFE/PP construction for chemical resistanceWide variety of configurations and ratings100% integrity tested in clean room environment
Materials Of Construction Membrane
PTFE
Materials Of Construction Structure
Polypropylene
Materials Of Construction Support Layers
Polypropylene
Note 0
Specifications are subject to change without notification.Proflow is a registered trademark of Parker Hannifin Corporation.Viton is a registered trademark of E.I. DuPont de Nemours & Co., Inc.Cuno is a registered trademark of Cuno Inc.
Specifications Cleanliness Particle Shedding
Wet-packed: < 1 particles/ml > 0.2µm after 6gal at 1gpmData as from open bag and installed, no additional installation flushing.
Specifications Effective Filtration Area Per 10 Inch 250 Mm Cart
9.3 ft² | 0.86 m²
Specifications Effective Filtration Area Per 5 Inch 130 Mm Cartr
4.6 ft² | 0.43 m²
Specifications End Fittings
DOE
Specifications Filter Rating
0.03 µm | 0.05 µm | 0.10 µm | 0.2 µm | 0.45 µm | 1 µm
Specifications Gasketo Ring Material
Buna N | EPDM | FEP-Encapsulated Silicone (O-Rings only) | FEP-Encapsulated Viton (O-Rings only) | None | Silicone | Viton®
Specifications Insert Style
No Insert
Specifications Maximum Forward Differential Pressuretemperature
80 psid | 5.5 bar
Specifications Maximum Reverse Differential Pressuretemperature
50 psid | 3.4 bar
Specifications Nominal Length
5 in | 130 mm
Specifications Thickness Gaskets Only
0.125" (3 mm) | 0.200" (5 mm) | (1) 0.200" (5 mm) & (1) 0.125" (3 mm) | No Gasket
Specifications Treatment Application
Extended Flushed with 18 Megohm DI Water
Specifications Treatment Options
Standard | Wet Packed

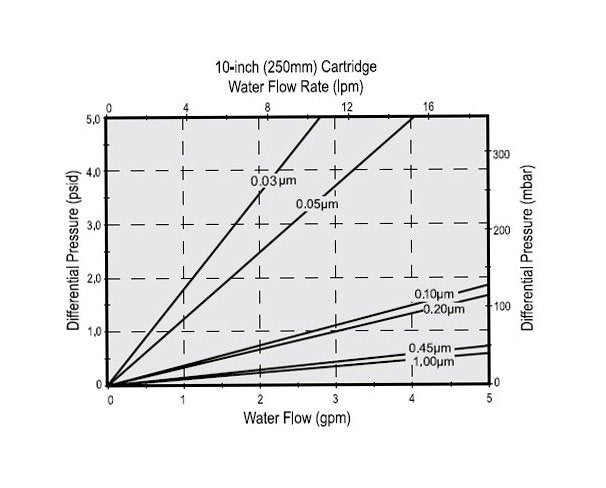

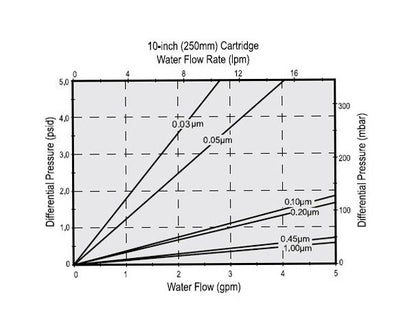

Specifications Water Flow Rates
0.03 µm - 0.6 gpm/psid (3.31 lpm/100 mbar) | 0.05 µm - 0.8 gpm/psid (4.39 lpm/100 mbar) | 0.10 µm - 1 .7 gpm/psid (9.33 lpm/100 mbar) | 0.20 µm - 3.2 gpm/psid (17.5 lpm/100 mbar) | 0.45 µm - 7.6 gpm/psid (41.72 lpm/100 mbar) | 1.00 µm - 9.1 gpm/psid (49.97 lpm/100 mbar)
Technical Support And Product Information 0
Parker Hannifin Corporation provides our customers with unsurpassed product consistency and cost-efficiency. Our experienced professionals can help you select the right solution for your application. For more information or to place an order, contact your local distributor. Information on product specifications, applications and chemical compatibility can be found on our web site at www.parker.com or through your nearest Parker Hannifin Corporation office.Parker Hannifin Corporation designs and manufactures an extensive line of innovative solutions for specific applications in the Microelectronics, Biopharmaceutical, Food and Beverage, Industrial and Chemical industries.
Tocresistivity Rinse Up Wet Packed 0
TOC rinse-up to background plus 5ppb of feed after 70gal @ 1gpm. Resistivity rinse-up to background minus 0.2megohm-cm of feed after 30gal @ 1gpm..
