Parker Proflow II-G Cartridges
Parker Proflow II-G Cartridges
SKU:PLE-d0cf4e
Enhance gas and solvent purification with Parker Proflow II-G Cartridges. Reliable, efficient, and quality-tested for optimal performance.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Parker Proflow II-G Cartridges
$79.99
Quantity: 1
Claim Your Seller Account
Parker Proflow II-G Cartridges
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Proflow II-G Cartridges feature a hydrophobic PTFE membrane designed for gas and solvent purification applications. With 5.6 sq ft of expanded PTFE membrane, these cartridges offer reliable gas and liquid flow rates, making them ideal for producing dry gas and purifying aggressive liquids and organic solvents. Manufactured under cleanroom conditions and integrity tested for consistent performance, these cartridges ensure quality and efficiency in various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications 0
PhotoresistsCompressed gasNon-sterile ventingElectronic grade solventsHot deionized water (less than 80ºC)
Benefits 0
Reliable air and liquid flow rates for effective performanceBroad chemical compatibility enables use in many applicationsBroad range of micron ratings for user convenienceSuperior hydrophobicity for long life in vent/air applicationsIntegrity tested to ensure quality
Materials Of Construction Membrane
PTFE
Materials Of Construction Structure
Polypropylene
Materials Of Construction Support Layers
Polypropylene
Note 0
Specifications are subject to change without notification.Polyflow is a registered trademark of Parker Hannifin Corporation.Viton is a registered trademarks of E.I. DuPont de Nemours & Co., Inc.Cuno is a registered trademarks of Cuno, Inc.
Specifications Cleanliness Particle Shedding
Wet-packed: < 1 particles/ml > 0.2µm after 6gal at 1gpmData as from open bag and installed, no additional installation flushing.
Specifications Effective Filtration Area Per 10 Inch 250 Mm Cart
5.6 ft² | 0.52 m²
Specifications End Fittings
226/Flat
Specifications Filter Rating
0.05 µm | 0.10 µm | 0.2 µm | 0.45 µm | 1 µm
Specifications Gasketo Ring Material
Buna N | EPDM | FEP-Encapsulated Silicone (O-Rings only) | FEP-Encapsulated Viton (O-Rings only) | None | Silicone | Viton®
Specifications Insert Style
(Standard) Encapsulated
Specifications Maximum Forward Differential Pressuretemperature
80 psid | 5.5 bar
Specifications Maximum Reverse Differential Pressuretemperature
50 psid | 3.4 bar
Specifications Nominal Length
30 in | 750 mm
Specifications Thickness Gaskets Only
0.125" (3 mm) | 0.200" (5 mm) | (1) 0.200" (5 mm) & (1) 0.125" (3 mm) | No Gasket
Specifications Treatment Application
Flushed with 18 Megohm DI Water

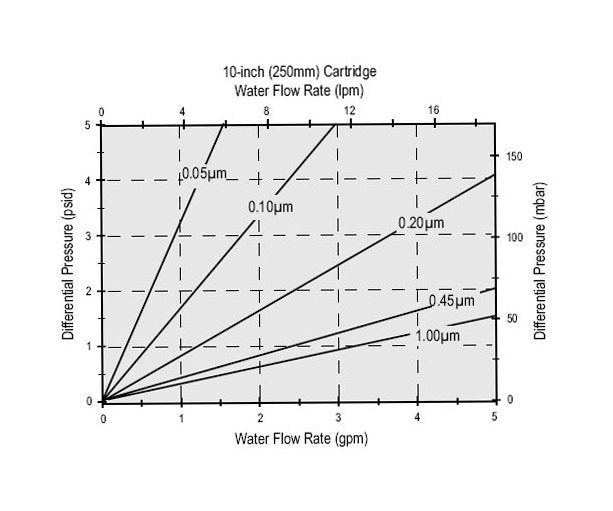

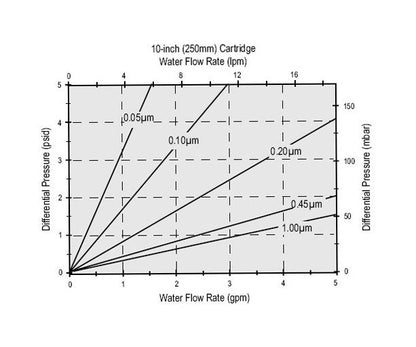

Specifications Water Flow Rates
0.05 µm - 0.6 gpm/psid (3.29 lpm/100 mbar) | 0.10 µm - 1.2 gpm/psid (6.59 lpm/100 mbar) | 0.20 µm - 2.5 gpm/psid (13.73 lpm/100 mbar) | 0.45 µm - 5.1 gpm/psid (28.00 lpm/100 mbar) | 1.00 µm - 6.2 gpm/psid (34.04 lpm/100 mbar)
Technical Support And Product Information 0
Parker Hannifin Corporation provides our customers with unsurpassed product consistency and cost-efficiency. Our experienced professionals can help you select the right solution for your application. For more information or to place an order, contact your local distributor. Information on product specifications, applications and chemical compatibility can be found on our web site at www.parker.com or through your nearest Parker Hannifin Corporation office.Parker Hannifin Corporation designs and manufactures an extensive line of innovative solutions for specific applications in the Microelectronics, Biopharmaceutical, Food and Beverage, Industrial and Chemical industries.
Tocresistivity Rinse Up Wet Packed 0
TOC rinse-up to background plus 5ppb of feed after 70gal @ 1gpm. Resistivity rinse-up to background minus 0.2megohm-cm of feed after 30gal @ 1gpm.
