Parker Proflow II-G Hydrophobic PTFE Membrane Cartridges
Parker Proflow II-G Hydrophobic PTFE Membrane Cartridges
SKU:PLE-b95416
Discover Parker Proflow II-G Cartridges - Reliable hydrophobic PTFE membrane for gas and solvent purification.
Regular price
$74.99
Regular price
Sale price
$74.99
Unit price
per
Initiate Order
Parker Proflow II-G Hydrophobic PTFE Membrane Cartridges
$74.99
Quantity: 1
Claim Your Seller Account
Parker Proflow II-G Hydrophobic PTFE Membrane Cartridges
$74.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Proflow II-G Cartridges feature a hydrophobic PTFE membrane designed for efficient gas and solvent purification. With 5.6 sq.ft. of expanded PTFE membrane, these cartridges offer reliable performance in producing dry gas and purifying aggressive liquids and organic solvents. Manufactured under cleanroom conditions, they undergo integrity testing to ensure consistent quality.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications 0
PhotoresistsCompressed gasNon-sterile ventingElectronic grade solventsHot deionized water (less than 80ºC)
Benefits 0
Reliable air and liquid flow rates for effective performanceBroad chemical compatibility enables use in many applicationsBroad range of micron ratings for user convenienceSuperior hydrophobicity for long life in vent/air applicationsIntegrity tested to ensure quality
Materials Of Construction Membrane
PTFE
Materials Of Construction Structure
Polypropylene
Materials Of Construction Support Layers
Polypropylene
Note 0
Specifications are subject to change without notification.Polyflow is a registered trademark of Parker Hannifin Corporation.Viton is a registered trademarks of E.I. DuPont de Nemours & Co., Inc.Cuno is a registered trademarks of Cuno, Inc.
Specifications Cleanliness Particle Shedding
Wet-packed: < 1 particles/ml > 0.2µm after 6gal at 1gpmData as from open bag and installed, no additional installation flushing.
Specifications Effective Filtration Area Per 10 Inch 250 Mm Cart
5.6 ft² | 0.52 m²
Specifications End Fittings
226/Flat
Specifications Filter Rating
0.05 µm | 0.10 µm | 0.2 µm | 0.45 µm | 1 µm
Specifications Gasketo Ring Material
Buna N | EPDM | FEP-Encapsulated Silicone (O-Rings only) | FEP-Encapsulated Viton (O-Rings only) | None | Silicone | Viton®
Specifications Insert Style
1/2" Shortened on 222 Fitting
Specifications Maximum Forward Differential Pressuretemperature
80 psid | 5.5 bar
Specifications Maximum Reverse Differential Pressuretemperature
50 psid | 3.4 bar
Specifications Nominal Length
20 in | 500 mm
Specifications Thickness Gaskets Only
0.125" (3 mm) | 0.200" (5 mm) | (1) 0.200" (5 mm) & (1) 0.125" (3 mm) | No Gasket
Specifications Treatment Application
Flushed with 18 Megohm DI Water

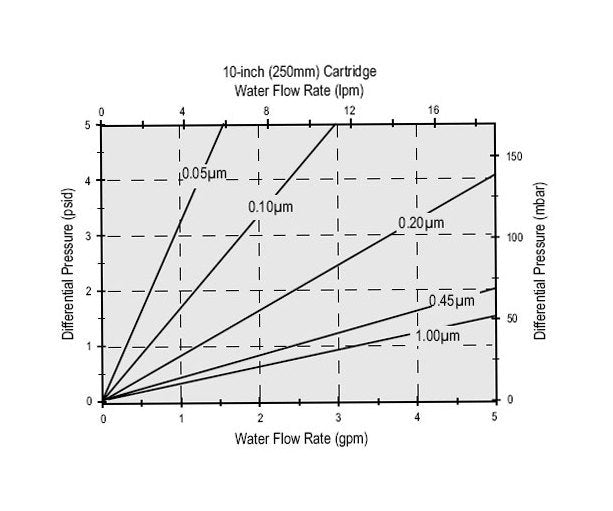

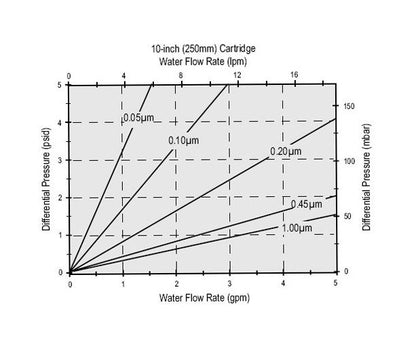

Specifications Water Flow Rates
0.05 µm - 0.6 gpm/psid (3.29 lpm/100 mbar) | 0.10 µm - 1.2 gpm/psid (6.59 lpm/100 mbar) | 0.20 µm - 2.5 gpm/psid (13.73 lpm/100 mbar) | 0.45 µm - 5.1 gpm/psid (28.00 lpm/100 mbar) | 1.00 µm - 6.2 gpm/psid (34.04 lpm/100 mbar)
Technical Support And Product Information 0
Parker Hannifin Corporation provides our customers with unsurpassed product consistency and cost-efficiency. Our experienced professionals can help you select the right solution for your application. For more information or to place an order, contact your local distributor. Information on product specifications, applications and chemical compatibility can be found on our web site at www.parker.com or through your nearest Parker Hannifin Corporation office.Parker Hannifin Corporation designs and manufactures an extensive line of innovative solutions for specific applications in the Microelectronics, Biopharmaceutical, Food and Beverage, Industrial and Chemical industries.
Tocresistivity Rinse Up Wet Packed 0
TOC rinse-up to background plus 5ppb of feed after 70gal @ 1gpm. Resistivity rinse-up to background minus 0.2megohm-cm of feed after 30gal @ 1gpm.
