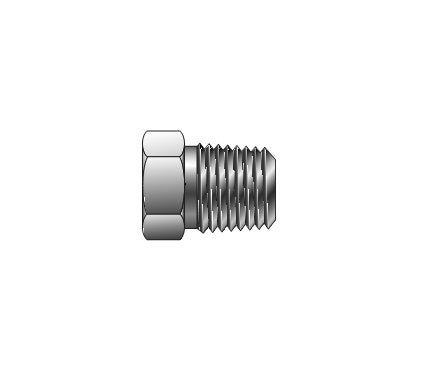

Parker RB Reducing Bushing Instrument Pipe Fitting
Parker RB Reducing Bushing Instrument Pipe Fitting
SKU:FIT-c544f3
Precision-engineered Parker RB Reducing Bushing for leak-free connections in instrumentation applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Parker RB Reducing Bushing Instrument Pipe Fitting
$24.99
Quantity: 1
Claim Your Seller Account
Parker RB Reducing Bushing Instrument Pipe Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker RB Reducing Bushing is a precision-engineered instrumentation pipe fitting designed for leak-free connections in a variety of industrial applications. Manufactured to the highest quality standards, this fitting is available in steel and brass materials, with other materials available upon request through the Parker Quick Response Department. Featuring precise machining from forgings and bar stock, it offers exceptional strength and durability. With working pressures compliant with ANSI standards, sealed packaging for cleanliness, and a range of sizes from 1/16" to 2" NPT, this reducing bushing ensures reliable performance and easy installation for your instrumentation needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

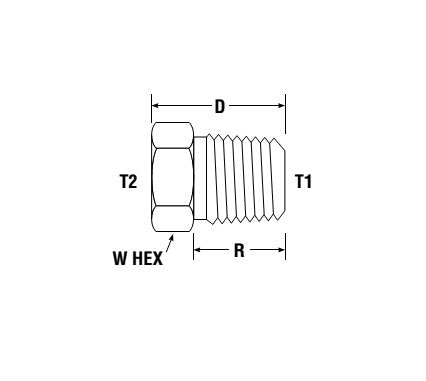

Dimensions Connection Type
FNPT to MNPT
Dimensions D
1.36 in
Dimensions Npt Thread Female T2
3/8
Dimensions Npt Thread Male T1
1
Dimensions R
.94 in
Dimensions Working Pressure Brass
2700 psig
Dimensions Working Pressure Stainless Steel
4600 psig
Dimensions Working Pressure Steel
4900 psig
Dimensions W Hex
1 3/8 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
