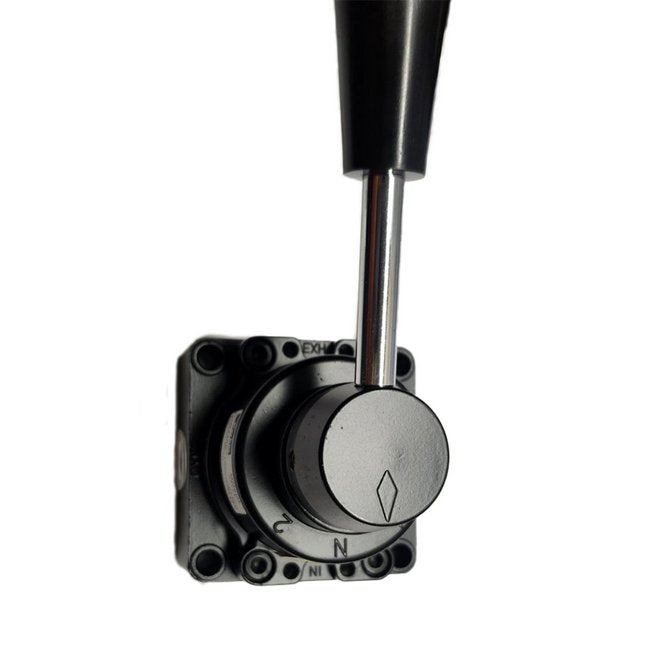

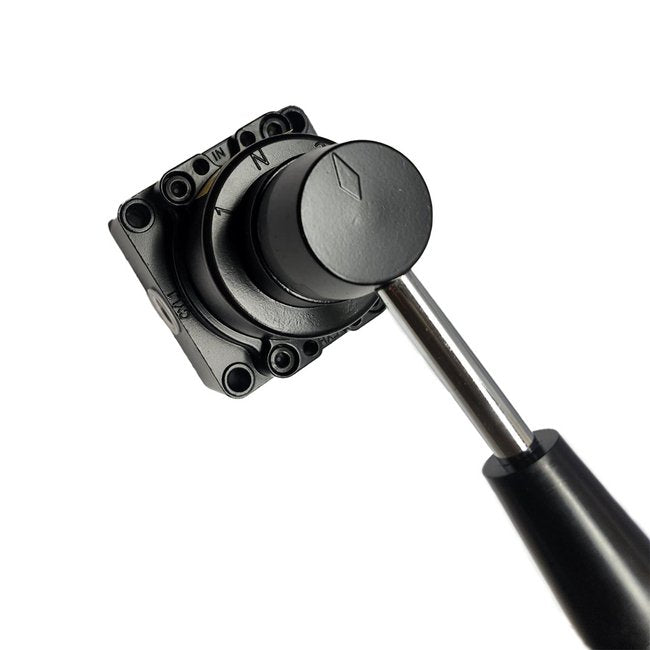

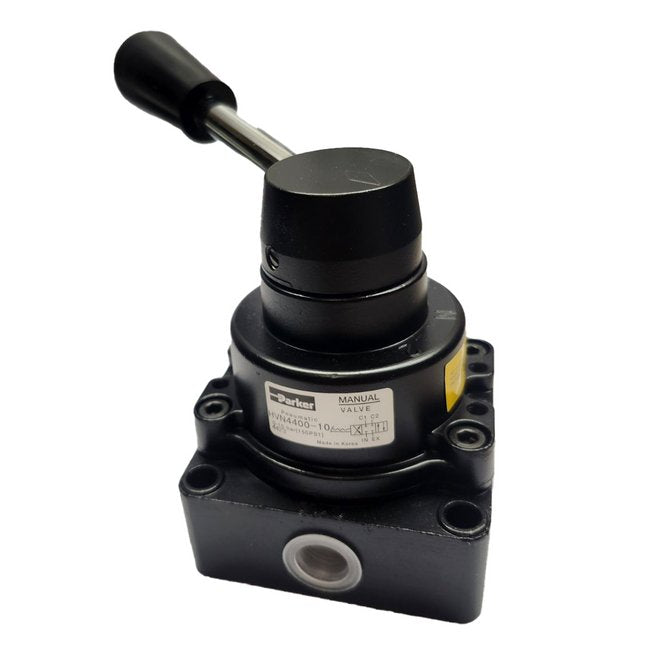

Parker Rotary Lever Actuator 4-Way 3-Position
Parker Rotary Lever Actuator 4-Way 3-Position
SKU:AIR-35893f
Compact, precise, and versatile Parker Rotary Lever Actuator for efficient air cylinder control.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Parker Rotary Lever Actuator 4-Way 3-Position
$79.99
Quantity: 1
Claim Your Seller Account
Parker Rotary Lever Actuator 4-Way 3-Position
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker 4-Way 3-Position Rotary Lever Actuator features a closed center design with 90° lever movement for precise control. In the neutral position, it ensures inlet closure to pressure and exhaust closure at outlets. Clockwise rotation connects inlet to C2 while C1 goes to exhaust; counter-clockwise rotation links inlet to C1 and C2 to exhaust. This compact and easy-to-use actuator is ideal for stationary air cylinders and as throttling valves for air cylinder positioning, making it a versatile solution for general pneumatic applications. Its detent action ensures smooth lever actuation, providing reliable and efficient performance.
Product Specifications
Specifications Cv Ansi
1.4
Specifications Cv Jis
2.72
Specifications Operating Pressure
0-150 psi | 0-10 bar
Specifications Operating Temp Range
32-166 ºF | 0-60 ºC
Specifications Port Size In
3/8 NPT
