Parker Straight Thread Reducer/Expander F5OG5
Parker Straight Thread Reducer/Expander F5OG5
SKU:FIT-5911e6
Precision-engineered Parker Straight Thread Reducer/Expander F5OG5 for leak-free industrial connections. ANSI compliant, durable, and high-performance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Parker Straight Thread Reducer/Expander F5OG5
$29.99
Quantity: 1
Claim Your Seller Account
Parker Straight Thread Reducer/Expander F5OG5
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

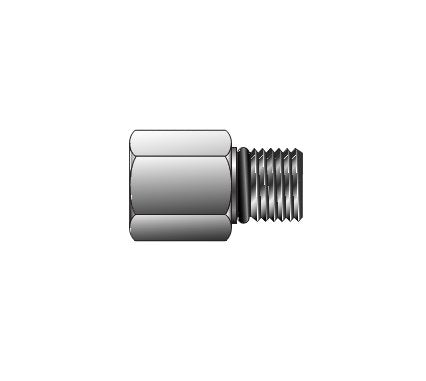

The Parker Straight Thread Reducer/Expander F5OG5 is a precision-engineered instrument pipe fitting essential for leak-free connections in industrial applications. Made from high-quality materials, this fitting ensures durability and performance. Featuring a FBSPP x BSPP connection type, compliant with ANSI standards, with threaded ports for seamless installation. Ideal for process control and instrumentation, meeting stringent industry requirements.

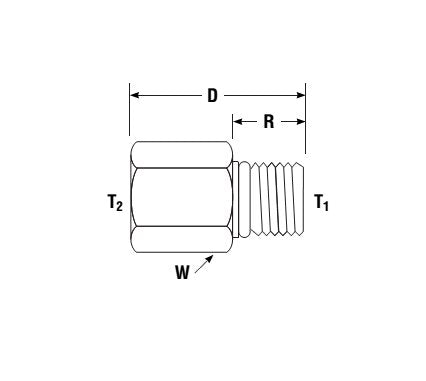

Product Specifications
Dimensions Connection Type
FBSPP x BSPP
Dimensions D
1.00 in
Dimensions D2 Drill
.63 in
Dimensions Interchanges With
12-RBST-8
Dimensions O Ring
3-908
Dimensions R
.44 in
Dimensions T1 Port Thd Ununf 2a
1-1/16-12
Dimensions T2 Port Thd Ununf 2b
3/4-16
Dimensions W Hex
1 1/4 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
