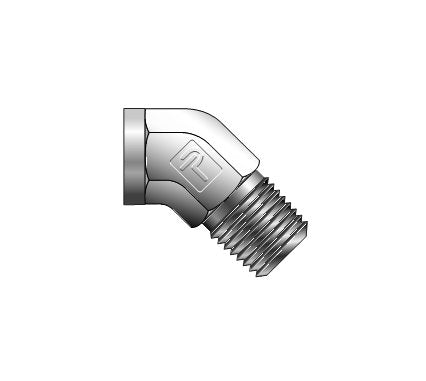

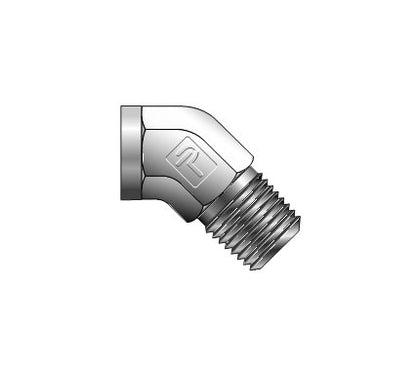

Parker Street Elbow 45° SVE, FNPT to MNPT, 1/8" NPT Thread, Brass/Steel/Stainless Steel
Parker Street Elbow 45° SVE, FNPT to MNPT, 1/8" NPT Thread, Brass/Steel/Stainless Steel
SKU:FIT-08c065
Precision-engineered Parker Street Elbow 45° SVE for leak-free instrumentation connections, high pressures, and ANSI compliance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Parker Street Elbow 45° SVE, FNPT to MNPT, 1/8" NPT Thread, Brass/Steel/Stainless Steel
$29.99
Quantity: 1
Claim Your Seller Account
Parker Street Elbow 45° SVE, FNPT to MNPT, 1/8" NPT Thread, Brass/Steel/Stainless Steel
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your instrumentation applications with the Parker Street Elbow 45° SVE. Crafted from high-quality steel, brass, or stainless steel, this precision-machined fitting ensures leak-free connections. With working pressures up to 5900 psig, it meets demanding industrial standards. Designed for process control and instrumentation, it complies with ANSI B31.1 and B31.3 codes. Get reliable performance and quality engineered fittings for your critical processes.
Product Specifications

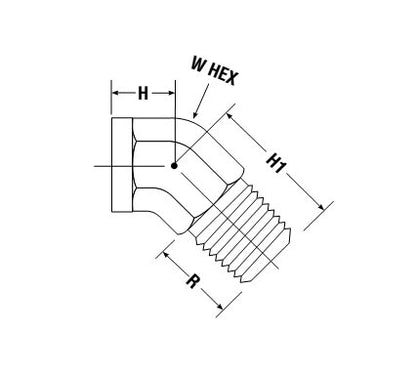

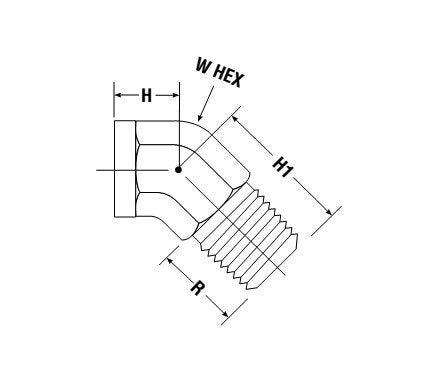

Dimensions Connection Type
FNPT to MNPT
Dimensions H
.47 in
Dimensions H1
.72 in
Dimensions Npt Thread Female
1/8
Dimensions Npt Thread Male
1/8
Dimensions R
.38 in
Dimensions Working Pressure Brass
2900 psig
Dimensions Working Pressure Stainless Steel
5500 psig
Dimensions Working Pressure Steel
5900 psig
Dimensions W Hex
9/16 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
