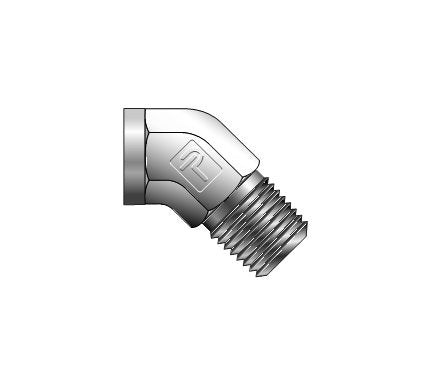

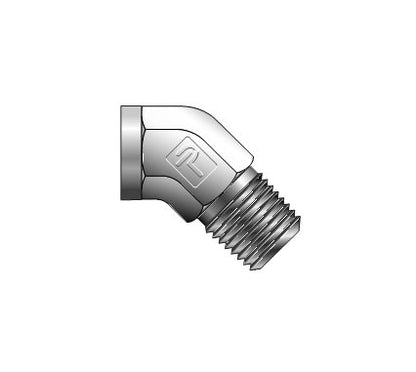

Parker Street Elbow 45° SVE, FNPT to MNPT, 3/8 NPT Thread, 316 Stainless Steel
Parker Street Elbow 45° SVE, FNPT to MNPT, 3/8 NPT Thread, 316 Stainless Steel
SKU:FIT-71367e
Precision-crafted Parker Street Elbow 45° SVE in 316 Stainless Steel for leak-free instrumentation connections. Meets ANSI standards.
Regular price
$19.99
Regular price
Sale price
$19.99
Unit price
per
Initiate Order
Parker Street Elbow 45° SVE, FNPT to MNPT, 3/8 NPT Thread, 316 Stainless Steel
$19.99
Quantity: 1
Claim Your Seller Account
Parker Street Elbow 45° SVE, FNPT to MNPT, 3/8 NPT Thread, 316 Stainless Steel
$19.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Street Elbow 45° SVE is a precision-crafted instrument pipe fitting designed for leak-free connections in industrial applications. Made from 316 stainless steel, this fitting meets rigorous quality standards and ensures reliable performance. Its features include precision machining for elbows, tees, and crosses, working pressures up to 5000 psig, and compliance with ANSI B31.1 and B31.3 codes. Packaged in sealed boxes for cleanliness, this fitting is ideal for instrumentation connections and meets the highest industry standards.
Product Specifications

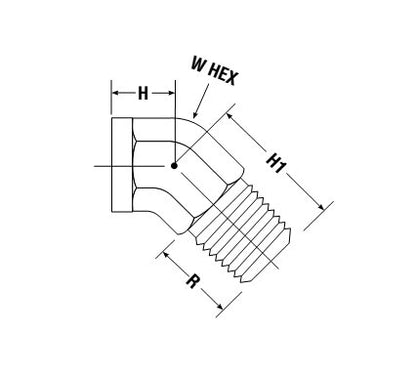

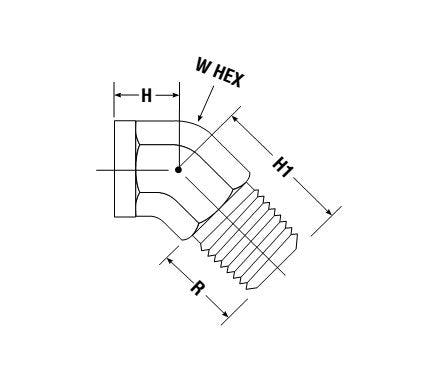

Dimensions Connection Type
FNPT to MNPT
Dimensions H
.72 in
Dimensions H1
1.06 in
Dimensions Npt Thread Female
3/8
Dimensions Npt Thread Male
3/8
Dimensions R
.56 in
Dimensions Working Pressure Brass
2700 psig
Dimensions Working Pressure Stainless Steel
5000 psig
Dimensions Working Pressure Steel
5300 psig
Dimensions W Hex
7/8 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
