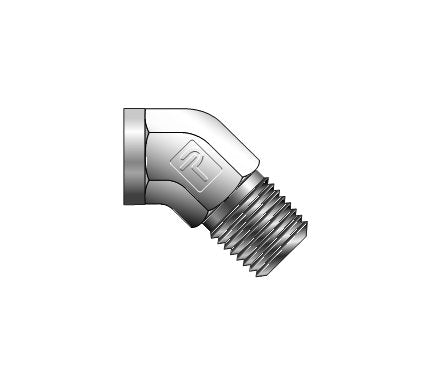

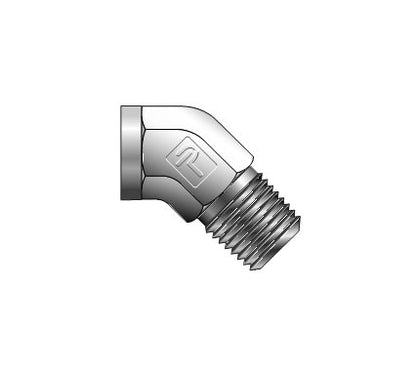

Parker Street Elbow 45° SVE Instrument Pipe Fitting
Parker Street Elbow 45° SVE Instrument Pipe Fitting
SKU:FIT-c81b9e
Reliable Parker Street Elbow 45° SVE for precise instrumentation connections.
Regular price
$35.99
Regular price
Sale price
$35.99
Unit price
per
Initiate Order
Parker Street Elbow 45° SVE Instrument Pipe Fitting
$35.99
Quantity: 1
Claim Your Seller Account
Parker Street Elbow 45° SVE Instrument Pipe Fitting
$35.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Street Elbow 45° SVE Instrument Pipe Fitting offers leak-free connections ideal for process, power, instrumentation, and industrial applications. Precision machined from quality materials, it provides reliable performance and compliance with industry standards. This fitting is suitable for government and institutional procurement needs.
Product Specifications

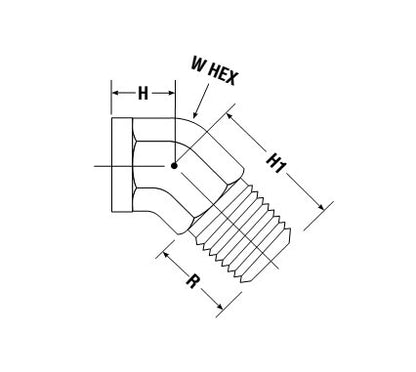

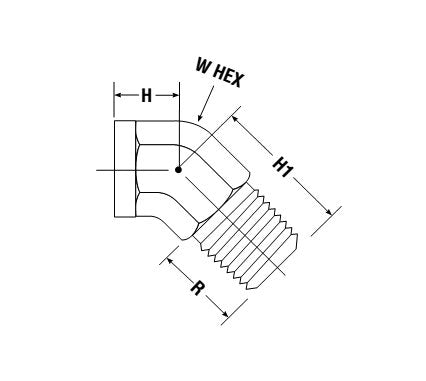

Dimensions Connection Type
FNPT to MNPT
Dimensions H
.47 in
Dimensions H1
.66 in
Dimensions Npt Thread Female
1/16
Dimensions Npt Thread Male
1/16
Dimensions R
.38 in
Dimensions Working Pressure Brass
3800 psig
Dimensions Working Pressure Stainless Steel
7000 psig
Dimensions Working Pressure Steel
7500 psig
Dimensions W Hex
7/16 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
