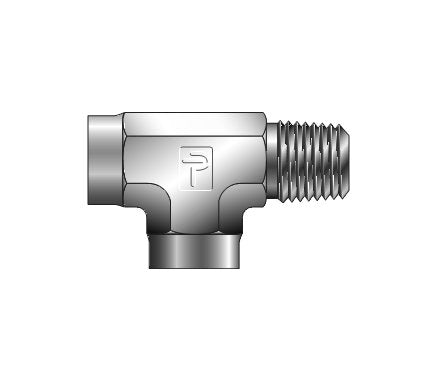

Parker Street Tee ST Instrument Pipe Fitting
Parker Street Tee ST Instrument Pipe Fitting
SKU:FIT-3e7a24
Precision-engineered Parker Street Tee ST Instrumentation Pipe Fitting for leak-free, high-pressure industrial applications.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Parker Street Tee ST Instrument Pipe Fitting
$34.99
Quantity: 1
Claim Your Seller Account
Parker Street Tee ST Instrument Pipe Fitting
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Street Tee ST Instrumentation Pipe Fitting is a precision-engineered, leak-free connection designed for a wide range of industrial applications. Crafted from high-quality materials such as steel and brass, these fittings are meticulously machined to meet the stringent standards required for instrumentation applications. With working pressures up to 6000 psig, these fittings ensure reliable performance and durability. Packaged in sealed, clear plastic shrink wrapped boxes, they meet ANSI B31.1 and ANSI B31.3 standards, offering unmatched quality and precision for your instrumentation needs.
Product Specifications

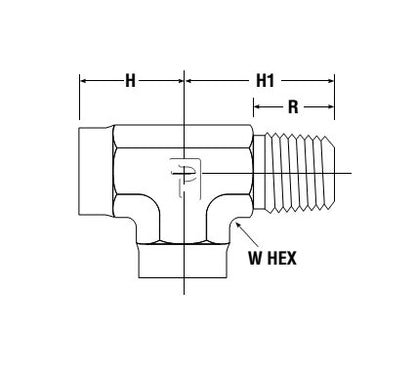

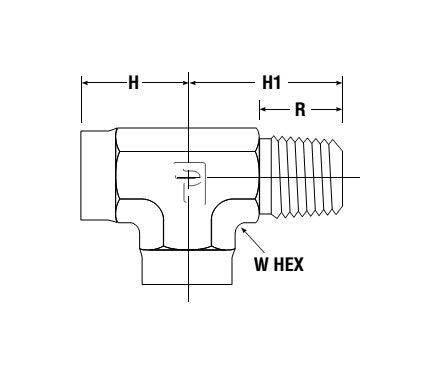

Dimensions Connection Type
FNPT x MNPT x FNPT
Dimensions H
.88 in
Dimensions H1
1.09 in
Dimensions Npt Thread Female
1/4
Dimensions Npt Thread Male
1/4
Dimensions R
.56 in
Dimensions Working Pressure Brass
3000 psig
Dimensions Working Pressure Stainless Steel
5600 psig
Dimensions Working Pressure Steel
6000 psig
Dimensions W Hex
3/4 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
