Parker Street Tee ST Instrument Pipe Fitting
Parker Street Tee ST Instrument Pipe Fitting
SKU:FIT-4d6dfb
Precision-engineered Street Tee ST fitting for leak-free connections in instrumentation applications. Wide material selection and high working pressures up to 5900 psig. ANSI compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Parker Street Tee ST Instrument Pipe Fitting
$29.99
Quantity: 1
Claim Your Seller Account
Parker Street Tee ST Instrument Pipe Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

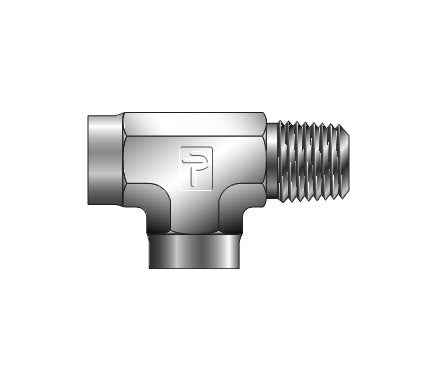

The Parker Street Tee ST is a precision-engineered instrument pipe fitting designed to provide leak-free connections for process, power, and instrumentation applications. Manufactured to the highest quality standards at Parker's Instrumentation Products Division, this fitting offers a wide range of sizes and materials including steel and brass. With working pressures up to 5900 psig, this fitting is ideal for industrial applications requiring reliability and performance. Packaged in sealed, clear plastic shrink-wrapped boxes, it ensures cleanliness and protection during transport and storage. Compliant with ANSI standards, these fittings meet rigorous industry requirements for instrumentation connections.
Product Specifications

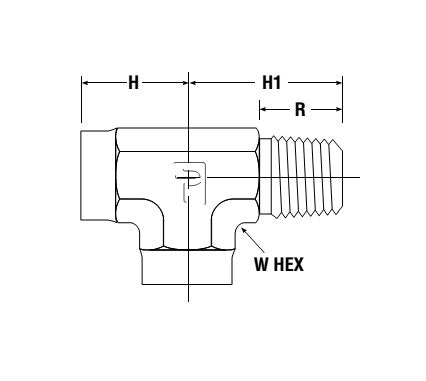

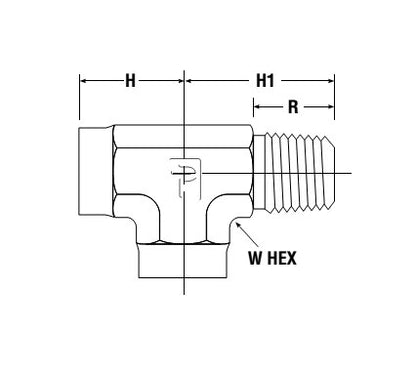

Dimensions Connection Type
FNPT x MNPT x FNPT
Dimensions H
.66 in
Dimensions H1
.78 in
Dimensions Npt Thread Female
1/8
Dimensions Npt Thread Male
1/8
Dimensions R
.38 in
Dimensions Working Pressure Brass
2900 psig
Dimensions Working Pressure Stainless Steel
5500 psig
Dimensions Working Pressure Steel
5900 psig
Dimensions W Hex
9/16 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
