Parker Street Tee ST Instrumentation Pipe Fitting
Parker Street Tee ST Instrumentation Pipe Fitting
SKU:FIT-ea366a
Precision-engineered Street Tee ST Pipe Fitting for leak-free connections in industrial applications. Sizes from 1/16" to 2" NPT, high working pressure up to 7500 psig, and sealed packaging for cleanliness.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Parker Street Tee ST Instrumentation Pipe Fitting
$29.99
Quantity: 1
Claim Your Seller Account
Parker Street Tee ST Instrumentation Pipe Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

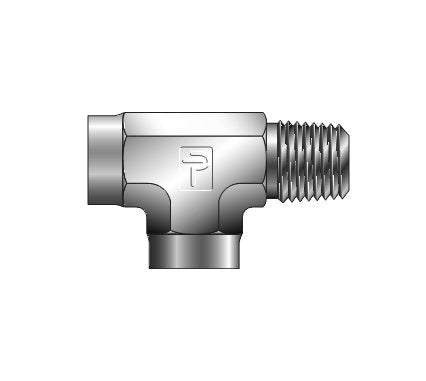

The Parker Street Tee ST Instrumentation Pipe Fitting is engineered for precision and reliability in process control and instrumentation applications. Manufactured to the highest quality standards, it offers leak-free connections suitable for various industrial applications. This fitting, available in sizes ranging from 1/16" to 2" NPT, features a working pressure up to 7500 psig, ensuring robust performance under demanding conditions. Packaged in sealed, clear plastic shrink wrapped boxes, it delivers cleanliness and protection during storage and transport.
Product Specifications

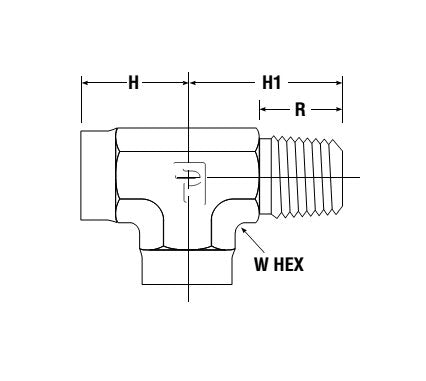

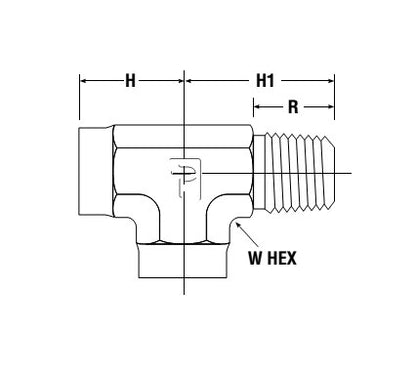

Dimensions Connection Type
FNPT x MNPT x FNPT
Dimensions H
.50 in
Dimensions H1
.72 in
Dimensions Npt Thread Female
1/16
Dimensions Npt Thread Male
1/16
Dimensions R
.38 in
Dimensions Working Pressure Brass
3800 psig
Dimensions Working Pressure Stainless Steel
7000 psig
Dimensions Working Pressure Steel
7500 psig
Dimensions W Hex
7/16 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
