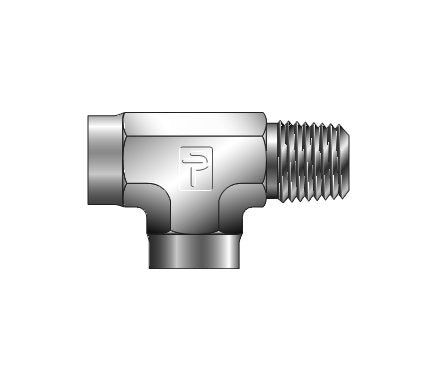

Parker Street Tee ST Instrumentation Pipe Fitting
Parker Street Tee ST Instrumentation Pipe Fitting
SKU:FIT-d04355
Premium Parker Street Tee ST Instrumentation Pipe Fitting for leak-free connections in industrial applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Parker Street Tee ST Instrumentation Pipe Fitting
$29.99
Quantity: 1
Claim Your Seller Account
Parker Street Tee ST Instrumentation Pipe Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Street Tee ST Instrumentation Pipe Fitting ensures leak-free connections essential for process control, power, and industrial applications. Precision machined from high-quality materials, this fitting meets stringent quality standards. Engineered for instrument applications, it offers a wide range of sizes, materials, and configurations, making it versatile and reliable for various industrial settings.
Product Specifications

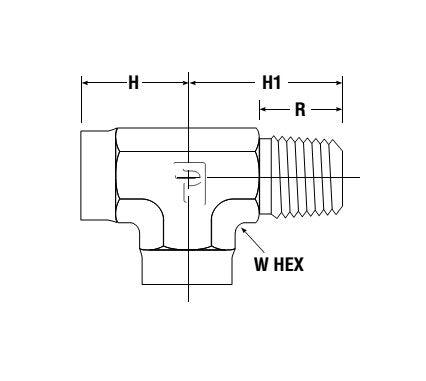

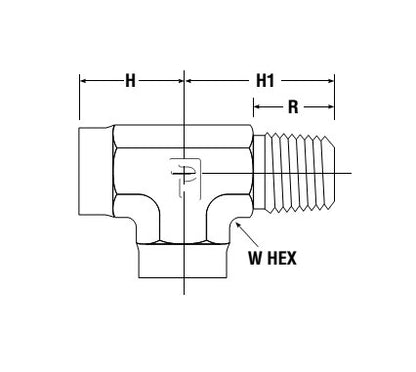

Dimensions Connection Type
FNPT x MNPT x FNPT
Dimensions H
1.23 in
Dimensions H1
1.47 in
Dimensions Npt Thread Female
1/2
Dimensions Npt Thread Male
1/2
Dimensions R
.75 in
Dimensions Working Pressure Brass
2500 psig
Dimensions Working Pressure Stainless Steel
4500 psig
Dimensions Working Pressure Steel
4800 psig
Dimensions W Hex
1 1/16 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
