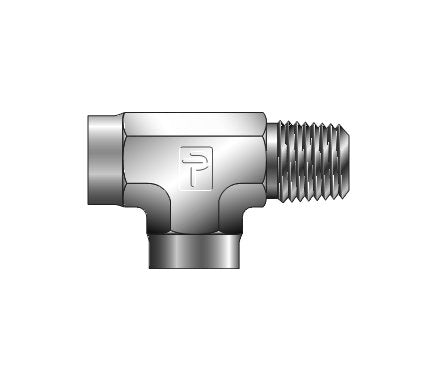

Parker Street Tee ST Instrumentation Pipe Fitting
Parker Street Tee ST Instrumentation Pipe Fitting
SKU:FIT-43ea8d
Reliable Parker Street Tee ST Fitting for leak-free connections in process, power, and industrial applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Parker Street Tee ST Instrumentation Pipe Fitting
$29.99
Quantity: 1
Claim Your Seller Account
Parker Street Tee ST Instrumentation Pipe Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Street Tee ST Instrumentation Pipe Fitting is engineered for precision and reliability, providing leak-free connections essential for process, power, instrumentation, and industrial applications. Manufactured under strict quality control in Huntsville, Alabama, this fitting ensures top-notch performance. It features a wide range of sizes, materials, and configurations, meeting the highest quality standards for seamless integration in diverse systems.
Product Specifications

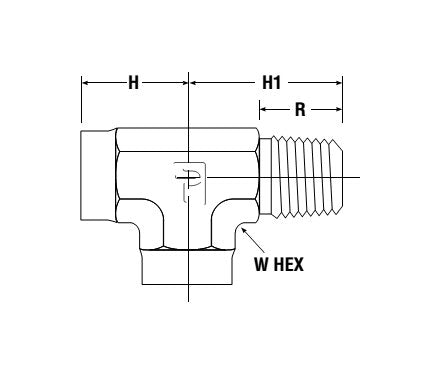

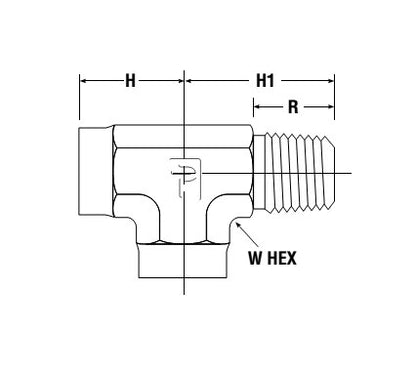

Dimensions Connection Type
FNPT x MNPT x FNPT
Dimensions H
1.36 in
Dimensions H1
1.59 in
Dimensions Npt Thread Female
3/4
Dimensions Npt Thread Male
3/4
Dimensions R
.75 in
Dimensions Working Pressure Brass
2000 psig
Dimensions Working Pressure Stainless Steel
3500 psig
Dimensions Working Pressure Steel
3700 psig
Dimensions W Hex
1 5/16 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
