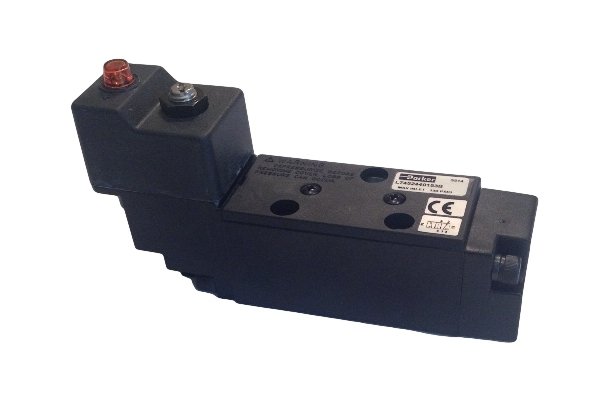

Parker Valvair Sprint Series Solenoid Air Valves

Name: Parker Valvair Sprint Series Solenoid Air Valves
Brand: Jamieson Equipment Co., Inc.
SKU: AIR-1f7b03
Price: 149.99 USD
Availability: OutOfStock

SKU:AIR-1f7b03

Versatile Parker Valvair Sprint Series Solenoid Air Valves for industrial applications. Easy installation, precise control.

$149.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Parker Valvair Sprint Series Solenoid Air Valves are meticulously engineered for a wide range of industrial applications, from concrete aggregate to rubber plants. These robust valves offer exceptional versatility, with options for single inline or subbase installation as well as mounting on segmented manifolds. Featuring various operators including solenoid air piloted with direct conduit connection, these valves can be easily field converted for internal or external pilot operated service. With a pressure range of 25 to 150 psig and a temperature range of -7 to 60°C, these valves are suitable for both lubricated and non-lubricated operations. Additionally, the valves can be equipped with sandwich pressure regulators and flow controls for precise air pressure and flow management.

Product Specifications

Specifications Design Level

Current Level

Specifications Enclosure

Conduit Connection at Solenoid (Coil w/19" Leads) or Remote Air Operator (2-Position Only)

Specifications Function

2-Position

Specifications Manufacturer

Parker Pneumatic

Specifications Operator

Remote Air Operator

Specifications Operator Option

Solenoid w/Locking Override & Indicator Light (120VAC or 24VDC)

Specifications Return

Operator Return (Use w/Double Operator Types)

Specifications Size

1/4" Basic

Specifications Type

Single (Less Base)

Specifications Voltage Options

110 V 60 Hz | 12 VDC | 120 V 60Hz | 24 VDC | 24 VDC Low Watt

Parker Valvair Sprint Series Solenoid Air Valves
