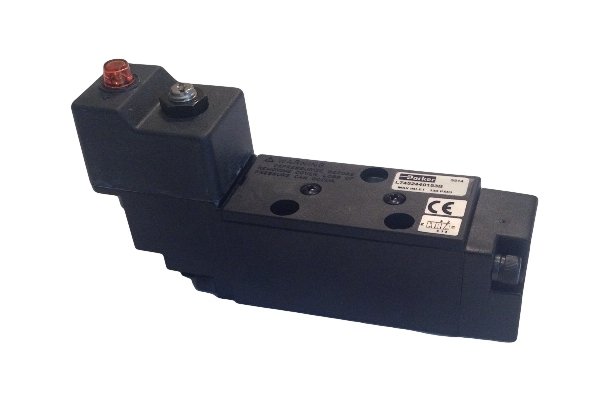

Parker Valvair Sprint Series Solenoid Valves

Name: Parker Valvair Sprint Series Solenoid Valves
Brand: Jamieson Equipment Co., Inc.
SKU: AIR-4979f3
Price: 129.99 USD
Availability: OutOfStock

SKU:AIR-4979f3

Robust Parker Valvair Sprint Series Solenoid Valves for industrial applications, featuring solenoid air operation, NPT ports, and zinc alloy body material.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Parker Valvair Sprint Series Solenoid Valves are designed for robust industrial applications like concrete aggregate and rubber plants. These valves offer versatility with options for single inline or subbase installation. Featuring solenoid air operation and a variety of operators, these valves can be field converted for external pilot operation. With port sizes of 1/4 and 3/8 inches, NPT ports, and a flow range from 1.4 to 1.54 Cv, these valves also accommodate sandwich pressure regulators and flow controls. The body material is zinc alloy and seal material is nitrile, ensuring durability and reliability in operation.

Product Specifications

Specifications Design Level

Current Level

Specifications Enclosure

Conduit Connection at Solenoid (Coil w/19" Leads) or Remote Air Operator (2-Position Only)

Specifications Function

Cylinder Ports Open to Inlet

Specifications Manufacturer

Parker Pneumatic

Specifications Operator

Solenoid

Specifications Operator Option

Solenoid w/Locking Override

Specifications Return

Operator Return (Use w/Double Operator Types)

Specifications Size

1/4" Basic

Specifications Type

Single (Less Base)

Specifications Voltage Options

110 V 60 Hz | 12 VDC | 120 V 60Hz | 24 VDC | 24 VDC Low Watt
