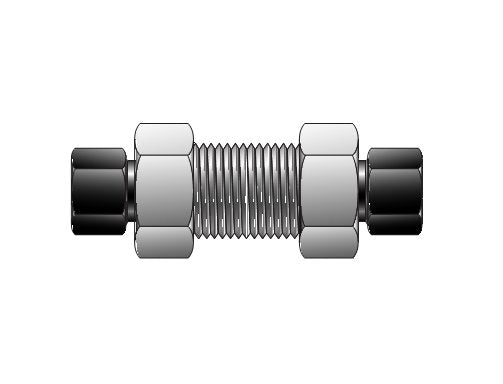

Parker WBMP7 MPI™ Bulkhead Union Connector 1 x 1, 12500 psig
Parker WBMP7 MPI™ Bulkhead Union Connector 1 x 1, 12500 psig
SKU:FIT-491ce3
Secure and gas-tight Parker WBMP7 MPI™ Bulkhead Union Connector for industrial use with operating pressures up to 15,000 psi. Includes front and back ferrules, compression gland nut, and molybdenum disulfide-coated inverted nut for ease of assembly and durability.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Parker WBMP7 MPI™ Bulkhead Union Connector 1 x 1, 12500 psig
$49.99
Quantity: 1
Claim Your Seller Account
Parker WBMP7 MPI™ Bulkhead Union Connector 1 x 1, 12500 psig
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker WBMP7 MPI™ Bulkhead Union Connector is meticulously engineered for secure, gas-tight connections, suitable for industrial applications such as off-shore oil platforms, research labs, and facilities with operating pressures up to 15,000 psi. Featuring high-quality materials like thick-walled annealed 316 SS or 2507 Super Duplex, this connector includes front and back ferrules, compression gland nut, and innovative design elements like molybdenum disulfide-coated inverted nut for ease of assembly and durability. Compliant with stringent industry standards, Parker MPI™ Fittings offer reliability, performance, and longevity for critical applications.

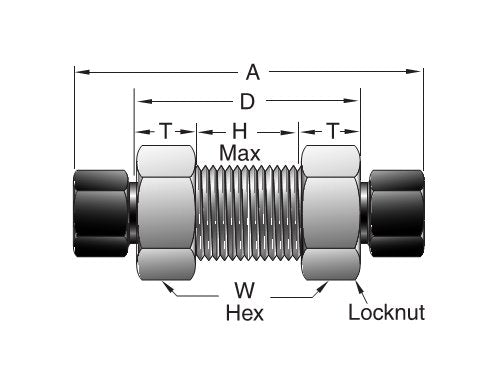

Product Specifications
Dimensions A
6.52 in
Dimensions Connection Type
MPI™ x MPI™
Dimensions D
4.25 in
Dimensions H Max
1.99 in
Dimensions Mpi Size
1 x 1
Dimensions R Thread
1 7/8-12
Dimensions T
1.13 in
Dimensions Working Mawp Pressure
12500 psig
Dimensions W Hex
2 1/2 in
Dimensions Xf Option
15000 psig
Specifications Assembly
MPI™ Fittings are assembled with standard hand tools up to 3/4" size. 1-1/2 turns past finger tight is all that is needed, (3/4" and 1" sizes on 2507 Super Duplex tubing must be hydraulically set). All sizes can be preset with a Parker Hydraulic Preset Tool.
Specifications Dedication To Quality
Our resources and vast product line are available through our worldwide distribution network. For more information regarding our products and services, please contact your authorized Parker Instrumentation Distributor.
Specifications Engineering Standards Used
The maximum pressure rating is marked on each fitting. MPI™ working pressures to be determined by selected tubing. Please see tables on pages 10 and 11 for specific working pressures.Size 4 (1/4") MPI™ - to 15,000 psiSize 6 (3.8") MPI™ - to 15,000 psiSize 8 (1/2") MPI™ - to 15,000 psiSize 9 (9/16") MPI™ - to 15,000 psiSize 12 (3/4") MPI™ - to 15,000 psiSize 16 (1") MPI™ - to 12,500 psi using 316 SS MPI tubing, 15,000 psi using MPI 2507 Super Duplex tubing with -XF Ferrule OptionNote: Tube and pipe thread sizes are designated by the number of sixteenths of an inch (1/4” tube = 4/16” or 4). See "How to Order" on page 8 for additional information.
Specifications Features
Every MPI™ Fitting has the features shown below:Front ferrule with corrosion-resistant Parker Suparcase® forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tube.Back ferrule with corrosion-resistant Parker Suparcase® provides a strong mechanical hold on the tube.Longer thread area for improved resistance to pressure and load on the ferrules.Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes.Long tube-support area improves resistance to vibration and line loads.
Specifications Materials And Identification
Standard MPI™ Fittings and Valves are made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials. Tubing and fitting materials should be selected based on compatibility with the fluid or gas media.Part numbers for MPI™ Fittings use symbols that identify their style, size, and composition. 2507 material is easily identified by a groove in the gland nut hex.
