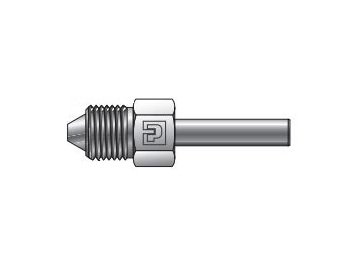

The Parker X41HT7 High Pressure C&T to MPI™ Tube Stub is a precision-engineered medium pressure compression fitting renowned for its secure and gas-tight connections. Ideal for applications requiring operating pressures up to 15,000 psi, this fitting is a cornerstone in industries like offshore oil and gas exploration, research labs, and facilities demanding reliability. Constructed from premium 316 SS or optional 2507 Super Duplex materials, every MPI™ Fitting comes complete with ferrules and compression gland nut for easy installation. Compliant with ASME Standards and safety factors, the X41HT7 boasts Parker Hannifin's commitment to quality and precision engineering.
Product Specifications

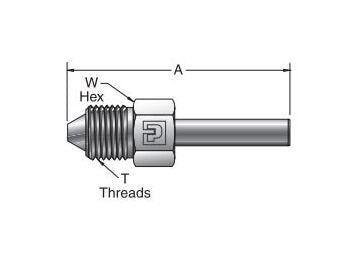

Dimensions A
3.49 in
Dimensions Connection Type
Straight Thread to Tube Stub
Dimensions High Pressure Adapter Size
9/16
Dimensions Mpi Tube Stub
3/8
Dimensions T Thread
1 1/8-12
Dimensions W Hex
1 13/16 in
Specifications Assembly
MPI™ Fittings are assembled with standard hand tools up to 3/4" size. 1-1/2 turns past finger tight is all that is needed, 3/4 and 1 inch 316 SS tubing and 3/4 and 1 inch 2507 Tubing must be hydraulically preset. Note: All sizes can be hydraulically preset using the Parker Preset Tooling.
Specifications Dedication To Quality
Our resources and vast product line are available through our worldwide distribution network. For more information regarding our products and services, please contact your authorized Parker Instrumentation Distributor.
Specifications Engineering Standards Used
Parker Hannifin has designed all fittings and valves using the following ASME Standards and associated Safety Factors: ASME B31.1 Power Piping ASME B31.3 Process Piping
Specifications Features
Every MPI™ Fitting has the features shown below:Front ferrule with corrosion-resistant Parker Suparcase® forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tube.Back ferrule with corrosion-resistant Parker Suparcase® provides a strong mechanical hold on the tube.Longer thread area for improved resistance to pressure and load on the ferrules.Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes.Long tube-support area improves resistance to vibration and line loads.
Specifications Materials And Identification
Standard MPI™ Fittings and Valves are made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials. Tubing and fitting materials should be selected based on compatibility with the fluid or gas media.Part numbers for MPI™ Fittings use symbols that identify their style, size, and composition. 2507 material is easily identified by a groove in the gland nut hex.
