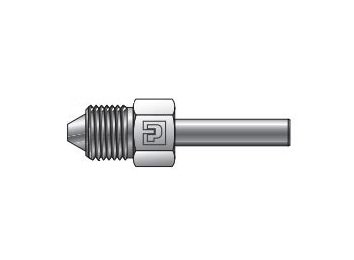

Parker X41HT7 High Pressure C&T to MPI Tube Stub - 3/8" Straight Thread, 1/2" MPI Tube Stub
Parker X41HT7 High Pressure C&T to MPI Tube Stub - 3/8" Straight Thread, 1/2" MPI Tube Stub
SKU:FIT-659426
Achieve unparalleled performance with the Parker X41HT7 High Pressure Tube Stub. Designed for 15,000 psi applications, this fitting meets ASME standards, offering superior quality and reliability.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Parker X41HT7 High Pressure C&T to MPI Tube Stub - 3/8" Straight Thread, 1/2" MPI Tube Stub
$49.99
Quantity: 1
Claim Your Seller Account
Parker X41HT7 High Pressure C&T to MPI Tube Stub - 3/8" Straight Thread, 1/2" MPI Tube Stub
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unparalleled performance with the Parker X41HT7 High Pressure C&T to MPI Tube Stub, designed and patented by Parker Hannifin. Engineered to withstand operating pressures up to 15,000 psi, this fitting ensures a secure, gas-tight connection suitable for off-shore oil and gas exploration, research facilities, and industrial applications. Crafted from Heat Code Traceable 316 SS or optional 2507 Super Duplex materials, this fitting features corrosion-resistant Parker Suparcase® ferrules, a longer thread area for enhanced pressure resistance, and a molybdenum disulfide-coated inverted nut for easy assembly. Compliant with ASME B31.1 and B31.3 standards, trust in the quality and reliability of Parker products for your critical fluid handling needs.
Product Specifications

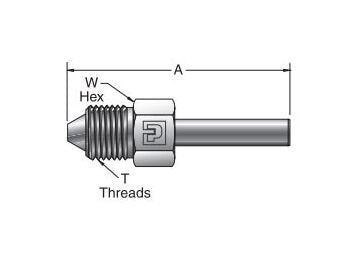

Dimensions A
3.43 in
Dimensions Connection Type
Straight Thread to Tube Stub
Dimensions High Pressure Adapter Size
3/8
Dimensions Mpi Tube Stub
1/2
Dimensions T Thread
3/4-16
Dimensions W Hex
13/16 in
Specifications Assembly
MPI™ Fittings are assembled with standard hand tools up to 3/4" size. 1-1/2 turns past finger tight is all that is needed, 3/4 and 1 inch 316 SS tubing and 3/4 and 1 inch 2507 Tubing must be hydraulically preset. Note: All sizes can be hydraulically preset using the Parker Preset Tooling.
Specifications Dedication To Quality
Our resources and vast product line are available through our worldwide distribution network. For more information regarding our products and services, please contact your authorized Parker Instrumentation Distributor.
Specifications Engineering Standards Used
Parker Hannifin has designed all fittings and valves using the following ASME Standards and associated Safety Factors: ASME B31.1 Power Piping ASME B31.3 Process Piping
Specifications Features
Every MPI™ Fitting has the features shown below:Front ferrule with corrosion-resistant Parker Suparcase® forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tube.Back ferrule with corrosion-resistant Parker Suparcase® provides a strong mechanical hold on the tube.Longer thread area for improved resistance to pressure and load on the ferrules.Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes.Long tube-support area improves resistance to vibration and line loads.
Specifications Materials And Identification
Standard MPI™ Fittings and Valves are made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials. Tubing and fitting materials should be selected based on compatibility with the fluid or gas media.Part numbers for MPI™ Fittings use symbols that identify their style, size, and composition. 2507 material is easily identified by a groove in the gland nut hex.
