Parker X42HBMP7 Medium Pressure MPI Connector
Parker X42HBMP7 Medium Pressure MPI Connector
SKU:FIT-8bc44a
Secure and gas-tight Parker X42HBMP7 Connector for up to 15,000 psi applications. Corrosion-resistant materials with easy assembly features.
Regular price
$56.99
Regular price
Sale price
$56.99
Unit price
per
Initiate Order
Parker X42HBMP7 Medium Pressure MPI Connector
$56.99
Quantity: 1
Claim Your Seller Account
Parker X42HBMP7 Medium Pressure MPI Connector
$56.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

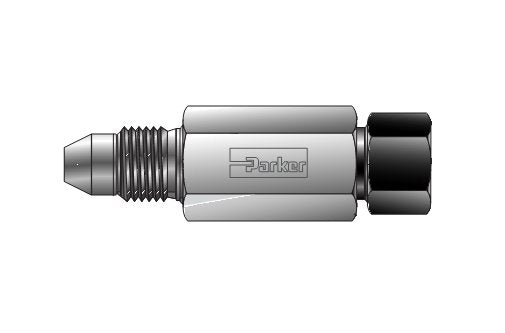

The Parker X42HBMP7 Medium Pressure to MPI™ Connector ensures secure and gas-tight connections for operating pressures up to 15,000 psi. Ideal for a wide range of industries including off-shore oil and gas exploration, research labs, and other high-pressure facilities. This fitting includes corrosion-resistant Parker Suparcase® ferrules, longer thread areas for enhanced pressure resistance, and Molybdenum disulfide-coated inverted nuts for easy assembly and multiple remakes. Compliant with industry standards, this connector is made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials, providing reliable performance for demanding applications.
Product Specifications

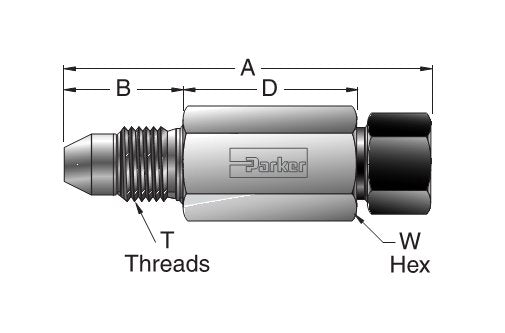

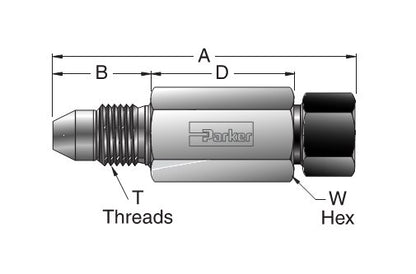

Dimensions A
2.80 in
Dimensions B
.81 in
Dimensions Connection Type
Straight Thread to MPI™
Dimensions Medium Pressure Adapter
1/4
Dimensions T Thread
7/16 - 20
Dimensions Working Mawp Pressure
15000 psig
Dimensions W Hex
3/4 in
Specifications Assembly
MPI™ Fittings are assembled with standard hand tools up to 3/4" size. 1-1/2 turns past finger tight is all that is needed, (3/4" and 1" sizes on 2507 Super Duplex tubing must be hydraulically set). All sizes can be preset with a Parker Hydraulic Preset Tool.
Specifications Dedication To Quality
Our resources and vast product line are available through our worldwide distribution network. For more information regarding our products and services, please contact your authorized Parker Instrumentation Distributor.
Specifications Features
Every MPI™ Fitting has the features shown below:Front ferrule with corrosion-resistant Parker Suparcase® forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tube.Back ferrule with corrosion-resistant Parker Suparcase® provides a strong mechanical hold on the tube.Longer thread area for improved resistance to pressure and load on the ferrules.Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes.Long tube-support area improves resistance to vibration and line loads.
Specifications Materials And Identification
Standard MPI™ Fittings and Valves are made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials. Tubing and fitting materials should be selected based on compatibility with the fluid or gas media. Part numbers for MPI™ Fittings use symbols that identify their style, size, and composition. 2507 material is easily identified by a groove in the gland nut hex.
Specifications Mpi Fittings Pressure Ratings
The maximum pressure rating is marked on each fitting. MPI™ working pressures to be determined by selected tubing. Please see tables on pages 10 and 11 for specific working pressures.Size 4 (1/4") MPI™ - to 15,000 psiSize 6 (3.8") MPI™ - to 15,000 psiSize 8 (1/2") MPI™ - to 15,000 psiSize 9 (9/16") MPI™ - to 15,000 psiSize 12 (3/4") MPI™ - to 15,000 psiSize 16 (1") MPI™ - to 12,500 psi using 316 SS MPI tubing, 15,000 psi using MPI 2507 Super Duplex tubing with -XF Ferrule OptionNote: Tube and pipe thread sizes are designated by the number of sixteenths of an inch (1/4” tube = 4/16” or 4). See "How to Order" on page 8 for additional information.
