PB¼ Non-Metallic Ball Valve Diaphragm Pump
PB¼ Non-Metallic Ball Valve Diaphragm Pump
SKU:PRO-6053f9
Reliable PB¼ Non-Metallic Ball Valve Pump for corrosive fluids & suspended solids. Ideal for wastewater applications.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
PB¼ Non-Metallic Ball Valve Diaphragm Pump
$399.99
Quantity: 1
Claim Your Seller Account
PB¼ Non-Metallic Ball Valve Diaphragm Pump
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

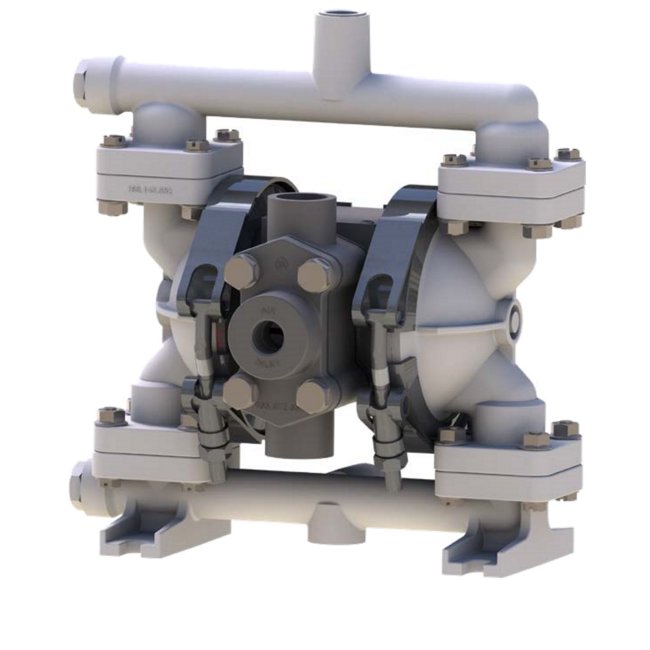

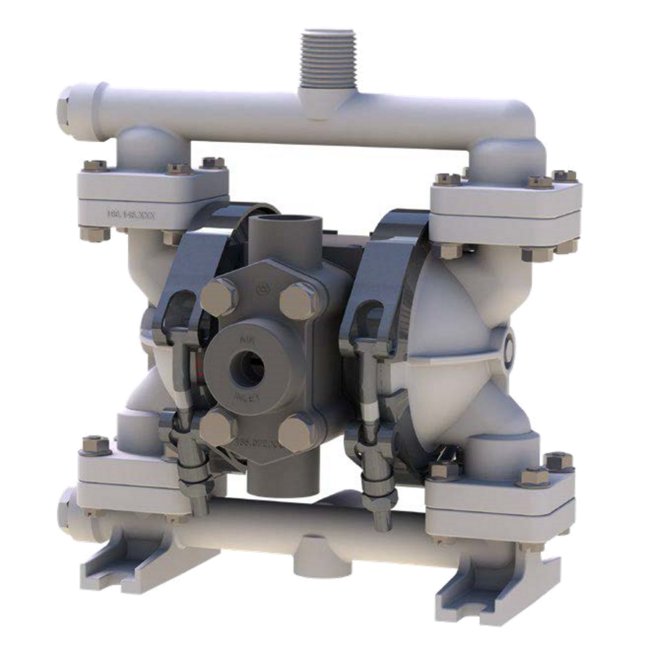

The PB¼ Non-Metallic Ball Valve Diaphragm Pump is an ideal solution for handling highly corrosive fluids, intermittent pumping needs, and applications with low abrasive fluids and suspended solids. Constructed with TPE and PTFE diaphragms and check valves, this pump offers exceptional durability and performance. With a maximum flow rate of 5 gpm and solid handling capability of 0.03125 inches, it ensures reliable operation. Designed with a range of features suitable for wastewater applications, this pump is a reliable choice for standard duty diaphragm pumping needs.
Product Specifications
Curves 0
Performance Curves
Dimensions 0
Dimensions
Specifications Check Valve Seat
Acetal
Specifications Check Valve Type
Ball
Specifications Customs Code
ECCN Code EAR99
Specifications Discharge Pipe Size External
1/2" NPT
Specifications Discharge Pipe Size Internal
1/4" NPT
Specifications Elastomers
Santoprene
Specifications Height
8 in | 200.66 mm
Specifications Inlet Size
0.25 FNPT in | 6 FNPT mm | 0.25" FNPT
Specifications Intake Pipe Size External
1/2" NPT
Specifications Intake Pipe Size Internal
1/4" NPT
Specifications Length
8 in | 0.1910 m | 191.01 mm
Specifications Max Flow Rate
5 gpm | 300.00 gph | 18.93 lpm
Specifications Non Wetted Material
Polypropylene
Specifications Outlet Size
0.25 FNPT in | 6 FNPT mm | 0.25" FNPT
Specifications Sku
WRPB14TS4CASP
Specifications Solids Handling
0.03125 in | 1 mm
Specifications Valve Seat
Acetal
Specifications Weight
4 lbs | 1.81 kg
Specifications Wetted Moc
Cond AcetAluminum
Specifications Width
5 in | 0.1394 m | 139.45 mm
Category 6
Standard Duty Diaphragm Pumps
