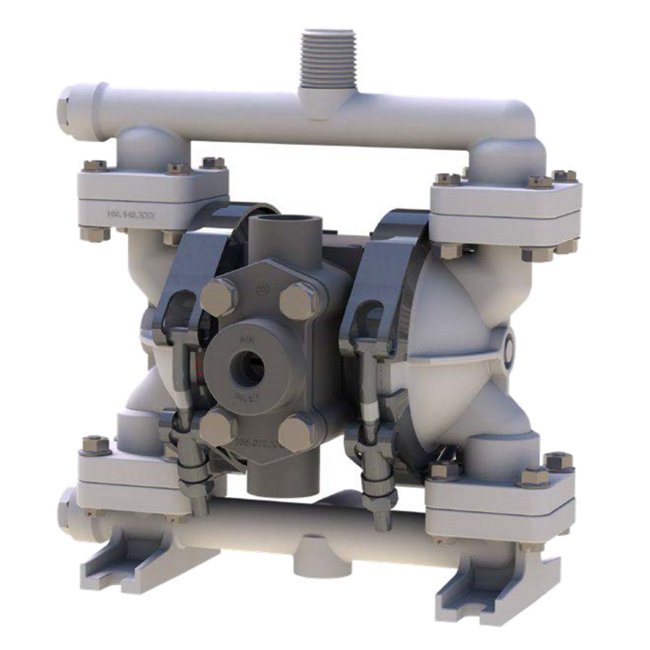

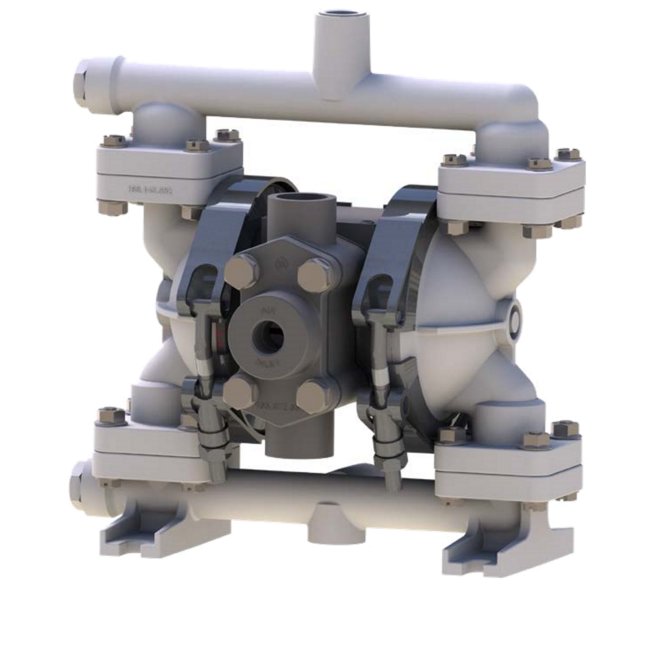

PB¼ Non-Metallic Ball Valve Diaphragm Pump

Name: PB¼ Non-Metallic Ball Valve Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-8a952c
Price: 399.99 USD
Availability: OutOfStock

SKU:PRO-8a952c

Reliable PB¼ Non-Metallic Ball Valve Diaphragm Pump for corrosive fluids and solids. Max flow rate 5 gpm, ideal for wastewater treatment.

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PB¼ Non-Metallic Ball Valve Diaphragm Pump is designed to meet the stringent requirements of highly corrosive fluids in industrial settings. Built with TPE and PTFE diaphragms and check valves, it ensures durability and reliability. With a solid construction and non-metallic components, this pump is suitable for applications with low abrasive fluids and suspended solids. It provides a maximum flow rate of 5 gpm, making it ideal for standard duty diaphragm pump needs in wastewater treatment and utility systems. This pump offers a compact and efficient solution for demanding environments.

Product Specifications

Curves 0

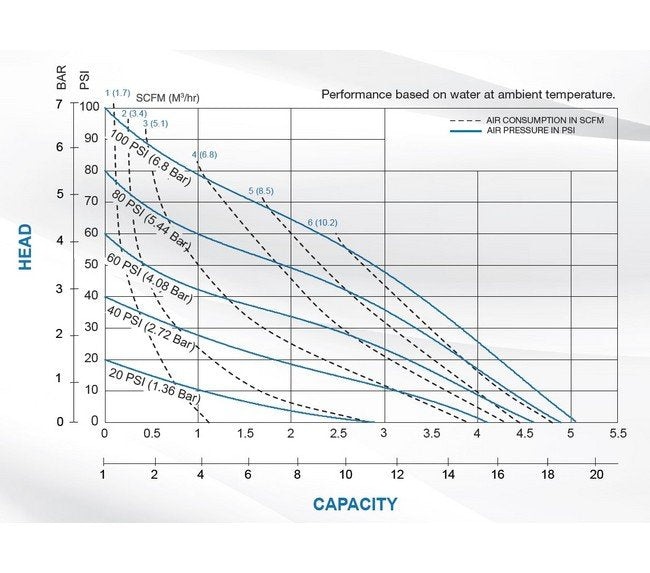

Performance Curves

Dimensions 0

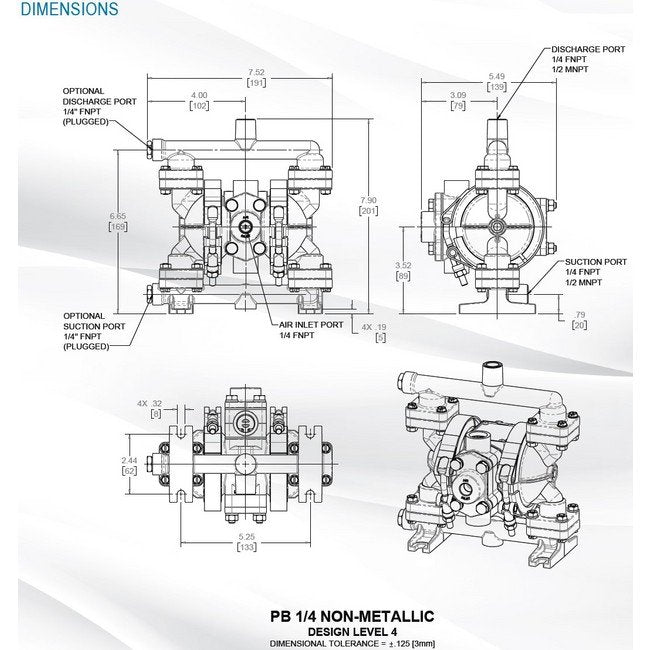

Dimensions

Specifications Check Valve Seat

PVDF - Kynar

Specifications Check Valve Type

Ball

Specifications Customs Code

HS Code 84131900ECCN Code 2B350.i

Specifications Discharge Pipe Size External

1/2" NPT

Specifications Discharge Pipe Size Internal

1/4" NPT

Specifications Elastomers

PTFE

Specifications Height

8 in | 200.66 mm

Specifications Inlet Size

0.25 FNPT in | 6 FNPT mm | 0.25" FNPT

Specifications Intake Pipe Size External

1/2" NPT

Specifications Intake Pipe Size Internal

1/4" NPT

Specifications Length

8 in | 0.1910 m | 191.01 mm

Specifications Max Flow Rate

5 gpm | 300.00 gph | 18.93 lpm

Specifications Non Wetted Material

Polypropylene

Specifications Outlet Size

0.25 FNPT in | 6 FNPT mm | 0.25" FNPT

Specifications Sku

WRPB14TT4KSP

Specifications Solids Handling

0.03125 in | 1 mm

Specifications Valve Seat

PVDF - Kynar

Specifications Weight

5 lbs | 2.27 kg

Specifications Wetted Moc

PVDF - Kynar

Specifications Width

5 in | 0.1394 m | 139.45 mm

Category 6

Standard Duty Diaphragm Pumps

PB¼ Non-Metallic Ball Valve Diaphragm Pump
