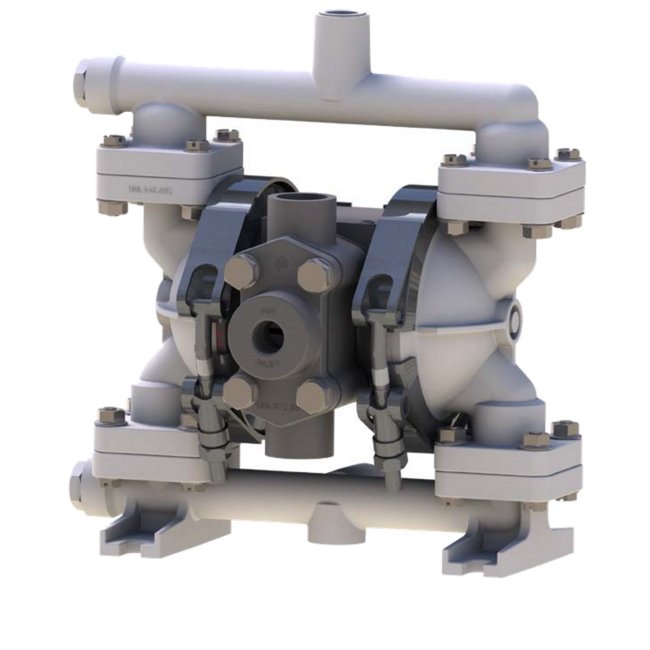

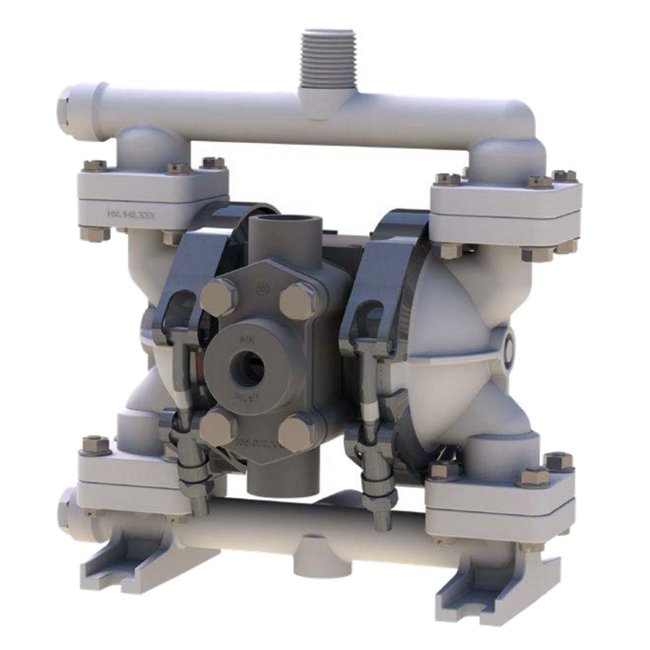

PB¼ Non-Metallic Ball Valve Diaphragm Pump
PB¼ Non-Metallic Ball Valve Diaphragm Pump
SKU:PRO-8c62d3
Reliable PB¼ Non-Metallic Ball Valve Diaphragm Pump for corrosive fluids & suspended solids.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
PB¼ Non-Metallic Ball Valve Diaphragm Pump
$289.99
Quantity: 1
Claim Your Seller Account
PB¼ Non-Metallic Ball Valve Diaphragm Pump
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PB¼ Top Discharge Non-Metallic Ball Valve Pump is a robust solution designed for handling highly corrosive fluids, low abrasive fluids, and suspended solids. Featuring TPE and PTFE construction in diaphragms and check valves, this pump ensures durability and reliability. With a valve seat made of polypropylene, a max flow rate of 5 gpm, and solid handling capacity of 0.03125 in, it exceeds industry standards for waste water applications.
Product Specifications
Curves 0

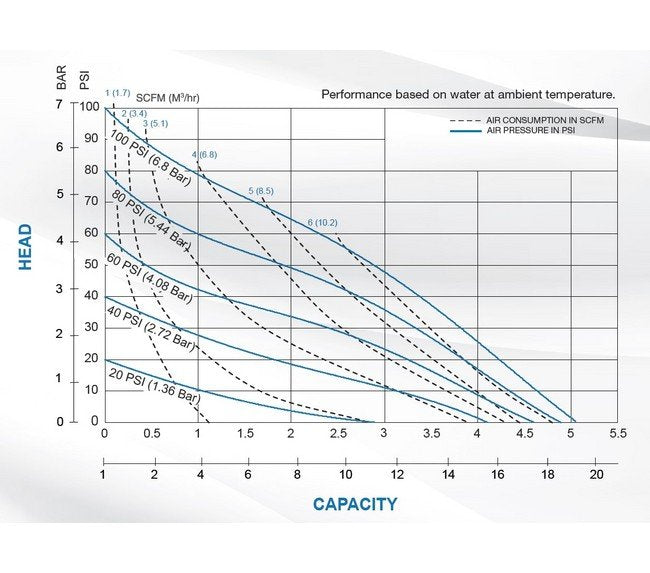

Performance Curves
Dimensions 0

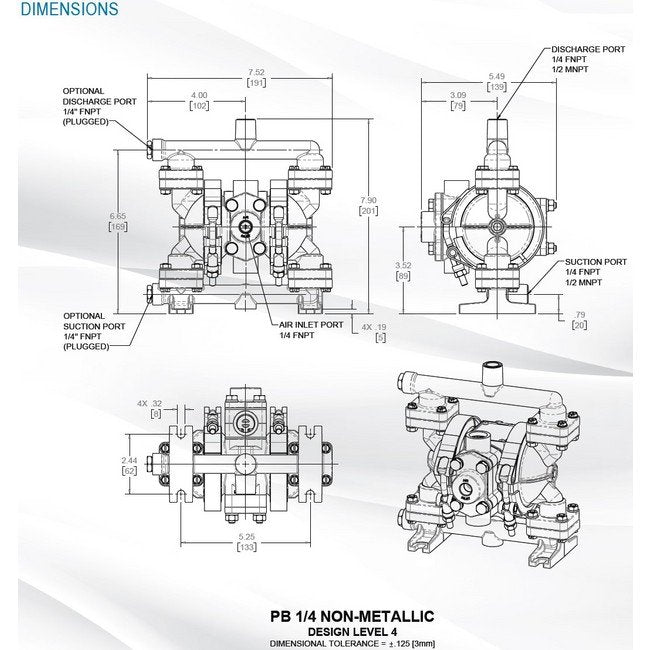

Dimensions
Specifications Check Valve Seat
Polypropylene
Specifications Check Valve Type
Ball
Specifications Customs Code
ECCN Code EAR99
Specifications Discharge Pipe Size External
1/2" NPT
Specifications Discharge Pipe Size Internal
1/4" NPT
Specifications Elastomers
PTFE
Specifications Height
8 in | 200.66 mm
Specifications Inlet Size
0.25 FNPT in | 6 FNPT mm | 0.25" FNPT
Specifications Intake Pipe Size External
1/2" NPT
Specifications Intake Pipe Size Internal
1/4" NPT
Specifications Length
8 in | 0.1910 m | 191.01 mm
Specifications Max Flow Rate
5 gpm | 300.00 gph | 18.93 lpm
Specifications Non Wetted Material
Polypropylene
Specifications Outlet Size
0.25 FNPT in | 6 FNPT mm | 0.25" FNPT
Specifications Sku
WRPB14TU4PPSP
Specifications Solids Handling
0.03125 in | 1 mm
Specifications Valve Seat
Polypropylene
Specifications Weight
4 lbs | 1.81 kg
Specifications Wetted Moc
Polypropylene
Specifications Width
5 in | 0.1394 m | 139.45 mm
Category 6
Standard Duty Diaphragm Pumps
