PB07 Series PCB Support: .157 Board Hole x .217 Chassis Hole

Name: PB07 Series PCB Support: .157 Board Hole x .217 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-7ffab4
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-7ffab4

Securely support circuit boards with the PB07 Series PCB Support. Easy to install, lockable yet releasable by hand, and compliant with UL and RoHS standards.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

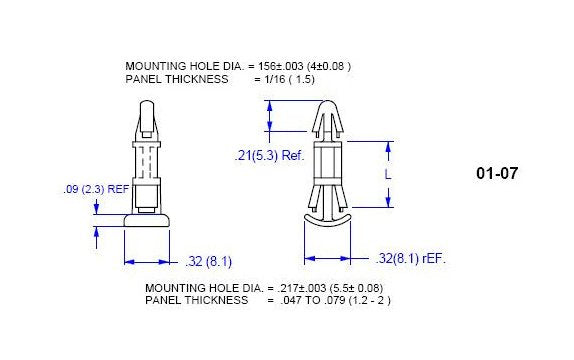

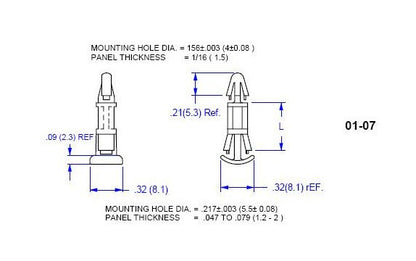

The PB07 Series PCB Support is designed to provide reliable support for circuit boards with a board thickness of .063 inches and chassis thickness ranging from .047 to .079 inches. Made of Nylon 66 UL94V-2 material, this support ensures secure PCB installation with minimal board protrusion. It features easy installation from the chassis underside and can be securely locked in place while remaining easily releasable by hand. Compliant with UL standards, RoHS directives, and ASTM D 4066, the PB07 Series is ideal for applications requiring a temperature range of -40 to 185F.

Product Specifications

Specifications Board Thickness

.063 (1.6) inches (mm)

Specifications Chassis Thickness

.047 - .079 (1.2 - 2.0) inches (mm)

Specifications Dim L 015

.472 (12.0) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-2

PB07 Series PCB Support: .157 Board Hole x .217 Chassis Hole
